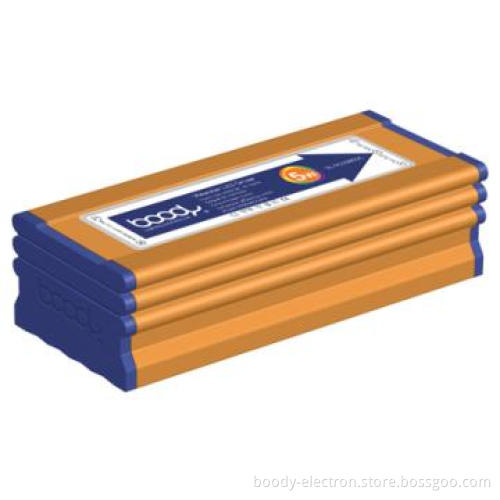

Constant Voltage Model LED Driver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Detail Description
Mode |
VL-V12W5SC |
VL-V12W7SC |
VL-V12W10SC |
Input voltage range |
100~250VAC |
100~250VAC |
100~250VAC |
Input frequency range |
47~63Hz |
47~63Hz |
47~63Hz |
Rated output voltage |
DC 12V/24V |
DC 12V/24V |
DC 12V/24V |
Rated output current |
0.42A |
0.58A |
0.83A |
LED Driver Rated Power |
5W |
7W |
10W |
Conversion efficiency |
>70% |
>75% |
>80% |
Ripple voltage noise |
<100mV |
<100mV |
<100mV |
Linear regulation rate |
<1% |
<1% |
<1% |
Input & output Hi-pot test |
3750VAC/1min |
3750VAC/1min |
3750VAC/1min |
Drain current |
<5mA |
<5mA |
<5mA |
Load Regulation rate |
<1% |
<1% |
<1% |
Waterproof grade |
IP44~IP68 |
IP44~IP68 |
IP44~IP68 |
Operating Temperature |
-30~+50° |
-30~+50° |
-30~+50° |
For more detail, pls contact with:
Mr. Chenny Li
Mobile: 0086 13773230176
E-mail: chenny
SKYPE: lakeluck
Ms. Carolina Lu
Mobile: 0086 13338038135
E-mail:
If I off work or you have sth emergency,pls contact :
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 2000 |
| Lead Time / Delivery Time | 45 Day(s) |
| Sample Available | YES |
| FOB Port | Shanghai |
| Target Market(s) | Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Japan & Korea, Mainland China, Middle East, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
