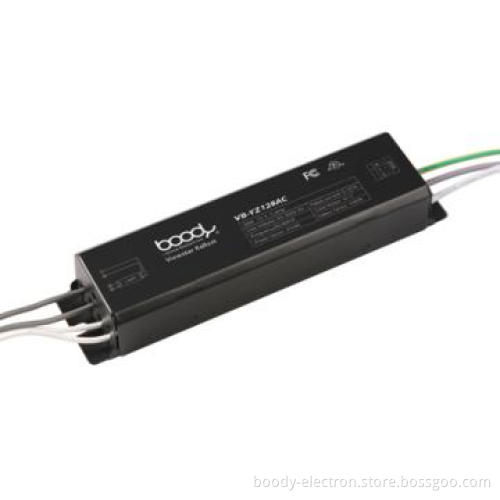

Ballast for T8 & T5 & 2U Lamps
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Usage | Fluorescent Lamp |
|---|
Detail Description
Ballast for T8 & T5 & 2U Lamps
Size (mm) |
L145×35×22 |
|
|
|
|
|
|
Characteristics |
|
|
|
Line Volts(v) AC |
220V AC |
|
|
Frequency |
50/60HZ |
|
|
Dimmable |
No |
|
|
Power factor |
≥0.95 |
|
|
Crest factor |
≤1.7 |
|
|
Ballast factor |
≥95% |
|
|
Lamp quantity |
1 PCS |
|
|
|
|
|
|
Classification |
|
|
|
Lamp quan |
With line input |
|
|
|
|
|
|
Executive Standard |
|
|
|
China |
Europe |
|
|
GB19510.1 |
EN61000-3-2 |
|
|
GB19510.4 |
EN61000-3-3 |
|
|
GB15144 |
EN55015 |
|
|
GB17743 |
EN61347 |
|
|
GB17625.1 |
EN61547 |
|
|
|
|
|
|
Type |
Lamp Type |
Rated waltage |
Rated current |
VB-YZ115MC |
T8 15W |
15W |
0.068A |
VB-YZ118MC |
T8 18W |
18W |
0.082A |
VB-YZ130AC |
T8 30W |
30W |
0.136A |
VB-YZ136AC |
T8 36W |
36W |
0.163A |
|
|
|
|
Type |
Lamp Type |
Rated waltage |
Rated current |
VB-YZ109AC |
T5 9W |
9W |
0.04A |
VB-YZ114AC |
T5 14W |
14W |
0.063A |
VB-YZ121AC |
T5 21W |
21W |
0.095A |
VB-YZ124AC |
T5 24W |
24W |
0.109A |
VB-YZ128AC |
T5 28W |
28W |
0.127A |
|
|
|
|
Type |
Lamp Type |
Rated waltage |
Rated current |
VB-YU109AC |
2U 9W |
9W |
0.04A |
VB-YU113AC |
2U 13W |
13W |
0.059A |
VB-YU125MC |
2U 25W |
25W |
0.113A |
VB-YU127MC |
2U 27W |
27W |
0.122A |
Ballast
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 2000 |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | according to the buyers |
| FOB Port | Shanghai |
| Loading Info | according to the buyers |
| Packing Info | according to the buyers |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
