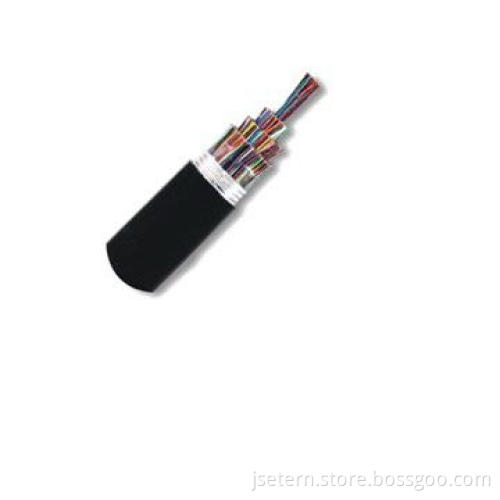

Copper clad aluminum(CCA) core communication Cable(HYA-CCA)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Type | Other |
|---|
Detail Description
Structural parameter
| type | Min. thickness of the jacket | Max OD of cable | Weight (kg/km) | type | Min. thickness of the jacket | Max OD of cable | Weight (kg/km) |
| 5×2×0.5 | 1.4 | 11.5 | 60 | 200×2×0.5 | 1.6 | 32.0 | 710 |
| 100×2×0.5 | 1.4 | 24.5 | 390 | 600×2×0.5 | 2.2 | 49.5 | 1870 |
Main electrical specifications
Main mechanical specifications
| No | Item | Unit | Standard |
| 1 | DC. resistance of each conductor at +20℃ | W/km |
Dia of cond mm 0.5 Max. 148.0 |
| 2 | Insulation resistance +20℃ DC 100～500V | MW.km | Min. 10×103 |
| No | Item | Unit | Standard |
| 1 | Conductor break elongation | % | ≥10 |
| 2 |
Tensile strength of insulation Material：HDPE |
MPa | ≥16 |
| 3 | Insulation break elongation | % | ≥300 |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10km |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
