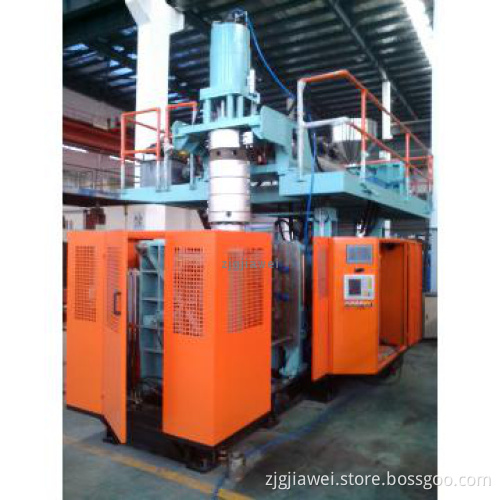

plastic chemical drum blow molding machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Voltage	220v
Warranty	one year
thickness controller	100POINT MOOG japan
human-machine	Import PLC JAPAN ,WINVIEW
energy-saving	20-35% than other supplier\'s machines

1.Machine parameter:

MACHINE MODEL		JWB100
max container capacity	L	120
machine dimension	M	5.82.84.6
total weight	ton	18
clamping force	kn	410
platen opoening stroke	mm	450-1250
platen size	mm	1020*1060
max mould size	mm	780*1260
minimum mould thickness	mm	465
motor power of pump	kw	15
air pressure	mpa	0.8
air consumption	m3/min	0.8
total power	kw	110
average engergy consumption	kw	66
screw diameter	mm	100
plasticing capacity	kg/hr	170
extruder heating power	kw	25.1
extruder driving	kw	45
power of die head	kw	26
max die pin diameter	mm	450
max die capacity	L	12

2. Plastic production for blow moulding machine:

Payment Terms	L/C, T/T, Western Union
Minimum Order	1 set
Lead Time / Delivery Time	55 Day(s)
Sample Available	YES
FOB Port	Shanghai
Loading Info	by sea
Packing Info	wooden case
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
