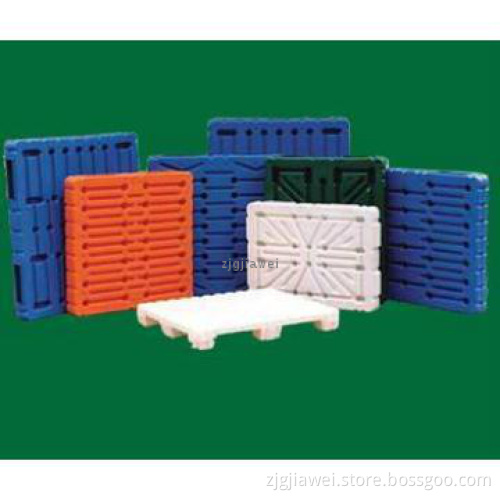

plastic tray machine manufacturer
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| condition | new |
|---|---|
| automatic | yes |
| Warranty | one year |
| electricity parts | OMRON |
| Control system | import PLC |
Detail Description
1).Clamping system:FIXED CLAMPING SYSTEM
2).Extrusion system: hard gear box+inveter
3).Die system: control incoming die with special control
4).Hydraulic system: hydraulic valve, seal parts propotional control
5).Control system: import PLC, human machine+PLC automatic temperature control model
Machine parameter
| MACHINE MODEL | JWB120Z | |
| max container capacity | L | 350 |
| machine dimension | M | 9.1*3.6*5.6 |
| total weight | ton | 45 |
| clamping force | kn | 1500 |
| platen opoening stroke | mm | 600-1400 |
| platen size | mm | 1400*1750 |
| max mould size | mm | 1110*2000 |
| minimum mould thickness | mm | 610-750 |
| motor power of pump | kw | 127.5 |
| air pressure | mpa | 0.18*6 |
| air consumption | m3/min | 1 |
| total power | kw | 1 |
| average engergy consumption | kw | 152 |
| 82 | ||
| screw diameter | mm | 120 |
| screw L/D ratio | 24 | |
| plasticing capacity | kg/hr | 280 |
| number of heating zone | 6 | |
| extruder heating power | kw | 32 |
| extruder driving | kw | 90 |
| number of heating zone | 6 | |
| power of die head | kw | 39 |
| max die pin diameter | mm | 500 |
| max die capacity | L | 25 |
die head system :
central incoming die head, totally eliminating the converging line of products, the surface is colorful and uniform; this die head is able to be used to match polyethylene, polypropylene and PVC and so on;
clamping force system :
Large arm cylinder axel, three point balance system, rectangular linear guide + cylinder guide double station platen translation system, larger clamping force, minimal distortion, under uniform press, speedy and stable translation.
Redesign in accordance with the molding requirement of the sample for efficient productivity.
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 1 set |
| Lead Time / Delivery Time | 60 Day(s) |
| Sample Available | NO |
| FOB Port | Shanghai |
| Loading Info | by sea |
| Packing Info | wooden case |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
