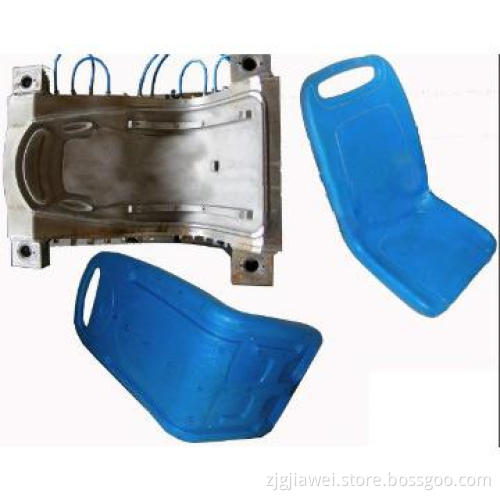

plastic seat making machine
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| condition | new |
|---|---|
| automatic | yes |
| energy-saving | yes |
| warranty | one year |
Detail Description
plastic seat making machine
1).Clamping system:FIXED CLAMPING SYSTEM
2).Extrusion system: hard gear box+inveter
3).Die system: control incoming die with special control
4).Hydraulic system: hydraulic valve, seal parts propotional control
5).Control system: import PLC, human machine+PLC automatic temperature control model
Machine parameter
SPECIFICATIONS |
UNITS |
JWB90 |
Max container capacity |
L |
60 |
Machine dimension (L*W*H) |
M |
5.3*2.4*3.8 |
Total weight |
Ton |
14 |
|
|
|
CLAMPING UNIT |
|
|
Clamping force |
KN |
320 |
Platen opening stroke |
mm |
450-1050 |
Platen size |
mm |
900*880 |
Max mould size (W*H) |
mm |
720*1200 |
Min Mould thickness |
mm |
460 |
|
|
|
POWER |
|
|
Air pressure |
Mpa |
1 |
Air consumption |
kw |
0.8 |
Average energy consumption |
KW |
45 |
Motor power of oil pump |
KW |
15 |
EXTRDER UNIT |
|
|
Screw diameter |
mm |
90 |
Screw L/D ratio |
L/D |
24 |
Plasticizing capacity |
Kg/hour |
140 |
Number of heating zone |
Zone |
4 |
Extruder heating power |
KW |
21.4 |
Extruder driving power |
KW |
37 |
|
|
|
DIE HEAD |
|
|
Number of heating zone |
Zone |
4 |
Power of die heating |
KW |
21.3 |
Max die pin diameter |
mm |
350 |
Accumulator capacity |
L |
6.6 |
Die head system
Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
The melting plastic out of the extrusion system is divided through the core parts of die head, distributed by the die head channel to become two peach shaped sections.
Clamping system
fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Bottom blowing system.
blowing pin up and down, expand the material, envelopment.
Redesign in accordance with the molding requirement of the sample for efficient productivity
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 1 set |
| Lead Time / Delivery Time | 60 Day(s) |
| Sample Available | NO |
| FOB Port | Shanghai |
| Loading Info | by sea |
| Packing Info | wooden case |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
