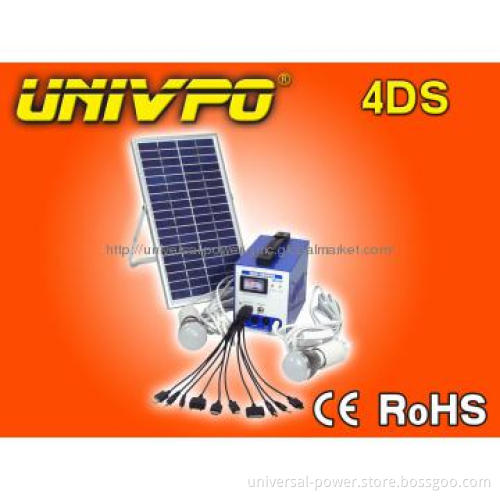

Portable DC Lighting Solar System (UNIV-4DS)

 Portable DC Lighting Solar System (UNIV-4DS)

A Portable DC Lighting Solar System / solar lighting kits  uses a photovoltaic (solar-electric) module to provide power for lights and small appliances. The power is available even at night and on cloudy days, makes your home or outside independent from the utility company and provide your own power.

 Features:

1. Designed for small family
2. Output: 12VDC(4outlets)
3. With battery voltage display
4. LED displays charge and load
5. With USB 5VDC output
6. Battery low voltage protection
Over charge protection
Over discharge protection
Overload protection

This system is usually used for home lighting/house lighting, remote area, mountainous area, desert area, grassland area, village, country area, camping, outdoor activities, traveling lighting at night.

4AH DC solar power system components:

1. Solar module: 12V/6W. With 8m cable and 2.1mm DC port, poly crystalline. (one set)
2. LED lights, 12V/3W, white color. With 4m cable and 2.1mm DC port. (two sets)
3. Battery box with controller built-in. (one set)
Model: 4AH DC power supply system
Rated charging current: 1A
Rated discharging current: 2A
Rated working voltage: 12V
Solar panel voltage: <25V
Float charging voltage: 14V
Low voltage disconnecting point: 10.5V
Low voltage reconnecting point: 11.5V

No load loss: <=8mA
USB port current: <=500 mA
Working temperature: -10degree~50degree
Storage temperature: -15degree~40degree
Humidity requirement: <90%, no condensation
Dimension: 161X97X147 mm
