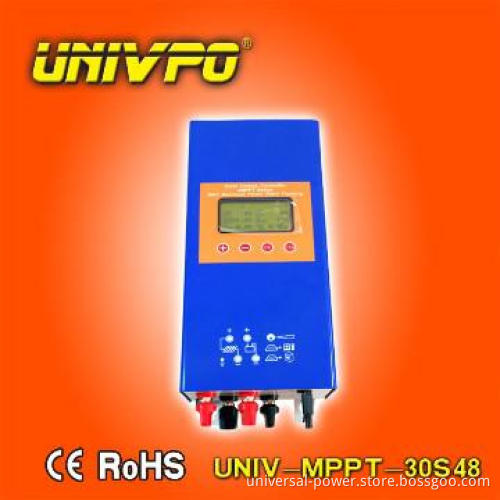

MPPT 30A 48Vsolar Charger controller

    MPPT 30A 48Vsolar Charger controller

The UNIV-MPPT-S series solar charer controlle has an most important feature of intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30%   electrical power using efficiency from solar panel.

Specification:

 *Controlled by CPU

*Charge model: MPPT mode

*Input rated voltage:48

*Max Loading current :30A

Maximum power point voltage tracking scope:48V~130V

Solar panel input voltage scope:≤130V

Solar panel input route:1pc

Max charge current: 30A

Float charging voltage:55.2V(adjustable

Absorption charging voltage:57.6V(adjustable)

No load loss:<45mA

Charging mode:(Bulk Absorption Float)

*Float charging voltage:13.8V for 12V,27.6V for 24V(adjustable)

 Temperature compensation for float charging voltage:-4mV/cell/°C

 Absorption charging voltage:14.4V for 12V,28.8V for 24V(adjustable)

 Working temperature scope:-10°C~+50°C

 Working humidity scope:0~90%, no condensation

 Storage temperature scope:-30°C~+80°C

 Efficiency:95%~97%

 Product size:380*283*100mm

 N.W:5kg

 *Package:white box

*MOQ:50pcs

  UNIV-MPPT-S series solar charge controller has following features:

• Simple button operation
• Automatic Identification System Voltage level
• Intelligent MPPT charge mode
• Automatic Temperature Compensation
• Adjustable charge-discharge control parameters
• Settable Operating mode of Load
• Overload, Short Circuit Protection
• Remote monitoring and control function (custom)
• Battery reverse-discharge protection
• Battery Low Voltage Disconnection (LVD)
• Battery reverse connection protection
• Accumulated function of charge and discharge Ampere hours
