MPPT Charger controller 20A

MPPT Charger controller 20A
The UNIV-MPPT-S series solar charer controlle has an most important feature of intelligent tracking input voltage from solar panel, which could let solar panel always working at Maximum Power Point of V-A curve. Compared with normal solar charge controller, this MPPT controller could increase 10%-30%   electrical power using efficiency from solar panel.

Specification:

*Controlled by CPU

*Charge model: MPPT mode

*Input rated voltage:12V / 24V

*Max Loading current :20A

*Full charge cut: 13.7V for 12V, 27.4V for 24V

*Low voltage cut: 10.5V for 12V, 21V for 24V

*Auto-reset loss: 12.5V for 12V, 25V for 24V

*No load loss:<30mA

*Voltage drop: <240mv

*Temperature compensation:-3mv/Cell/°C

*Product size:188X93X55mm

*N.W: 0.6kg/pc

*Package:white box

*MOQ:50pcs

UNIV-MPPT-S series solar charge controller has following features:

• Simple button operation
• Automatic Identification System Voltage level
• Intelligent MPPT charge mode
• Automatic Temperature Compensation
• Adjustable charge-discharge control parameters
• Settable Operating mode of Load
• Overload, Short Circuit Protection
• Remote monitoring and control function (custom)
• Battery reverse-discharge protection
• Battery Low Voltage Disconnection (LVD)
• Battery reverse connection protection
• Accumulated function of charge and discharge Ampere hours

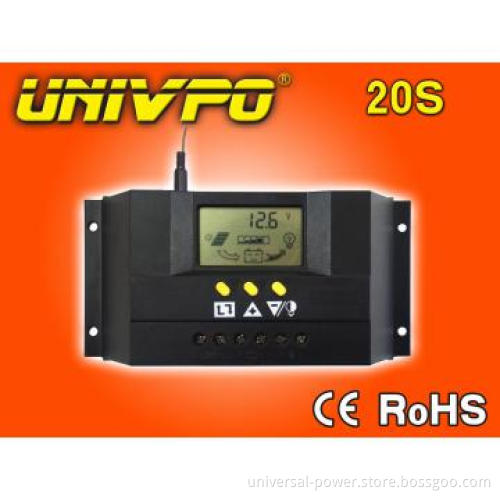

 Fig1. product picture

Fig 2: how to use the solar charge controller

 Fig 3: solar charger controller in the system
