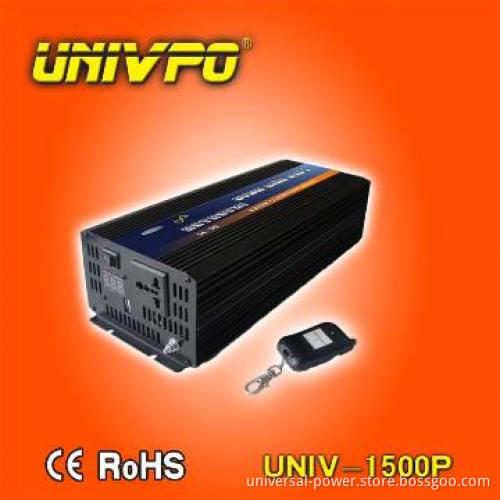

solar inverter /1500W pure sine wave inverter

• DC AC Power Inverter - 12 or 24 Volt 1500W
• Power Inverter Output Wave Form: Pure Sine Wave
• LED indicators showing power and fault
• DC/AC Isolated
• Pre-slotted mounting plate
• Over-voltage shut down
• Low-voltage alarm
• Low-voltage shut down
• Over-temperature shut down
• Output short-circuit protection
• DC reverse polarity protection by fuse
• Cooling: Thermal fan

Advantages of our power inverters:
1. Inside transformer with high quality ferrite core, which takes high efficiency to our inverters
2. PCB assembling is SMD in stead of hand-made
3. World-brand key components (Mosfet, IGBT etc. ) ensure the units working stable.
4. Specialized PCB design, reasonalbe product consturcture makes the units with less Electro Magnetic Interference and more reliability
5. Good loading ability by special micro-processor design

Input:
       DC Voltage:  12V or 24V or 48V

       Voltage Range:10-15VDC or 21-30VDC or 42-60VDC
       No Load Current Draw: <0.9A
        Efficiency:> 89%
       DC Connector:Cables With Clips or Car Adaptor
 Output:
        AC Voltage:100/110/120VAC or 220/230/240 VAC
        Continuous Power:1500W
        Surge Power:3000W
        Waveform:Pure sine wave
        Frequency:50HZ or 60HZ
        AC Regulation:3%

Low Voltage Alarm:10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V

Low Voltage Shut Down:9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V

Over Load:Shut Off Output

Over Voltage Shut Down:15.5V or 30.5V or 61.2V or 120V

Over Thermal:Shut Off Output Automatically

Fuses:Short Circuit

Machine Size(mm):375X 150X88

Net Weight(kg):3.5

Gross Weight(kg):4.5
