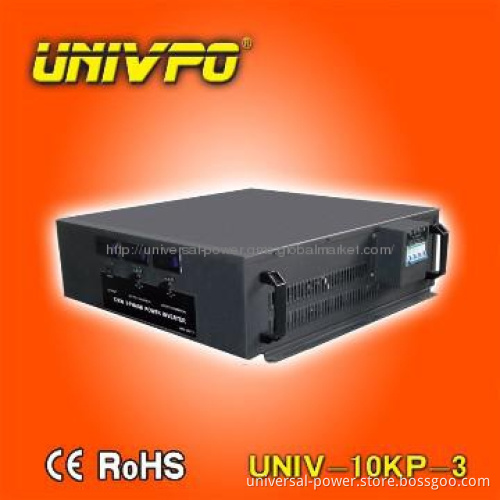

3-phase 10KW power Inverter,pure sine wave inverter

Inperter Output Waveform:Pure Sine Wave
GFCI protection
Thermally-controlled cooling fan
AC hardwire terminal block
LED digital display
Heavy duty conformal coating on circuit boards
Full protection including short-circuit, over-voltage,under-voltage,over-temperature,over-load protection

Technical Data:

Input Voltage: 24V / 48V DC

Output Voltage: 400V /230V 3 Phase AC

Continiuous Power: 10KW

Output Current (Amps AC per phase):Up to 15

Peak Output (Amps AC per phase): Up to 30

Frequency : 50Hz or 60Hz

Optimum Efficiency: >85%

Input current(Amps DC):Up to 500

Total harmonic distortion: <5%

Net Weight: 40kg/pc

Product size: 65X60X20cm

Package:Wooden case

Master carton size:87X73X39cm 1pc/case

Container: 117pcs
