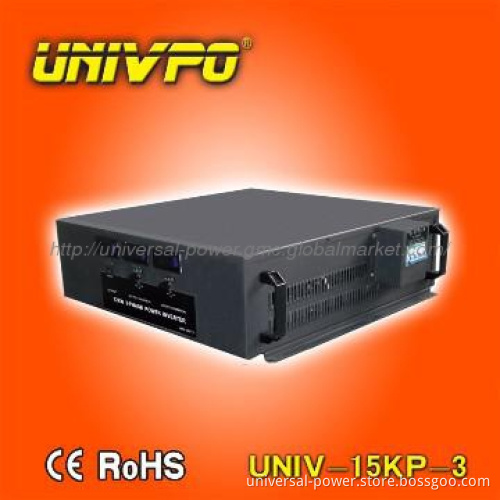

15KW 3 Phase Inverter- Pure Sine Wave Inverter

15KW 3 Phase Inverter- Pure Sine Wave Inverter

Feature:



• Output Waveform:Pure Sine Wave
• With GFCI
• Thermally-controlled cooling fan
• AC hardwire terminal block
• LED digital display
• Heavy duty conformal coating on circuit boards
• Full protection including short-circuit, over-voltage,under-voltage,over-temperature,over-load, Non-full-phase protection

Technical Data:

Input Voltage: 24V/48V DC

Output Voltage: 400 /208V AC or 208V/120V AC

Continiuous Power: 15KVA

Output Current (Amps AC per phase):Up to 22 Aper phase

Peak Output (Amps AC per phase): Up to 45 per phase

Frequency : 50Hz or 60Hz

Optimum Efficiency: >85%

Output waveform: pure sine wave

Input current(Amps DC):Up to 750A

Total harmonic distortion: <5%

Net Weight: 55 kgs/pc

Product size: 65X60X20cm

Package:Wooden case

Master carton size:84X73X39cm 1pc/case

Container: 117 pcs

1. Office equipment series: Computers, Printers, Copiers, Scanners, digital camera and etc;

2. Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans and etc;

3. Kitchen utensils series: Microwave ovens, Refrigerators, Freezers, Coffee machines, Blenders, Oven, induction cooker and etc;

4. Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment and etc;

5. In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights and etc;

6. Industry equipments series: Solar energy, wind power, gas discharge lamp and etc;

7. Power tool series: Electric saw, drilling machine, punching machines, air compressor and etc.

Protection Features

1. Overload Protection: When the loading exceed nominal power 1500W, the output    voltage will be lowed down to keep the output current unchanged,

and avoid the damage of the unit.

2. Short-circuit Protection:When the load is short circuit, then turn on the inverter, or when the inverter is on, and there is a short circuit on the output terminal or on the loaded devices, the machine will cut off the output at once. The inverter will recovered after the short circuit is removed.

3. Reverse connection protection:When the input DC poles are reverse connected, the fuse will be melted to protect the machine, after replacing the fuse and make the connection is corrected, the unit will work normally.

4. Overtemperature protection:When the temperature of power device exceed 75C degree, the machine will shut off the output. The unit will be recovered after cooling down and re-start it.

5. Undervoltage Protection:If the machine uses the battery as DC input, when the battery voltage lower than about 10.5V dc, the unit will alarm firstly and then shut down, to avoid the over-discharge of the battery.

6. overvoltage protection: When the input dc voltage exceed 15V, the unit will be under highvoltage protection, and the unit can not be started. to avoid the machine to be damaged by the high voltage.
