Skl Rail Clip For Railroad System, SGS Proved Skl Rail Clip , Top quality OEM Skl Rail Clip

1> E Clip
Technical Parameter of The E Clip
Diameter (mm) Weight (Kg) Toe Load (Kgf)
12 0.18 200~400
14 0.30 400~600
16 0.44 500~700
18 0.59 800~1000
20 0.76 1100~1400

Material: 60Si2MnA
Fatigue Property: When spring deflection is 9.1mm, fatigue life is up to 5 million cycles without breaking.
Hardness: 42-47 HRC.
Material Reference: DIN 17221, BS970, GB/T 4357, GB/T 4358.
Flamping force 25KN, Fatigue life 3 millions to 5 million

Clip Toe Deflection Toe Load Range
10.5mm~14.5mm 1100Kgf~1400Kgf
11mm~14mm 800Kgf~1000Kgf
14mm~15mm 650Kgf~750Kgf

Surface: Plain with anti-rust oil, Bluing (Black Oxide), Painting, Zinc Plating or as per requirement.
MOQ: 5000pcs
Packaging: 15pcs or 50pcs per woven bag. Fumigation free Pallet. Clients can appoint the way.
We are a leading elastic rail clip manufacturer in China. We can also make other rail fastenings such as railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type.

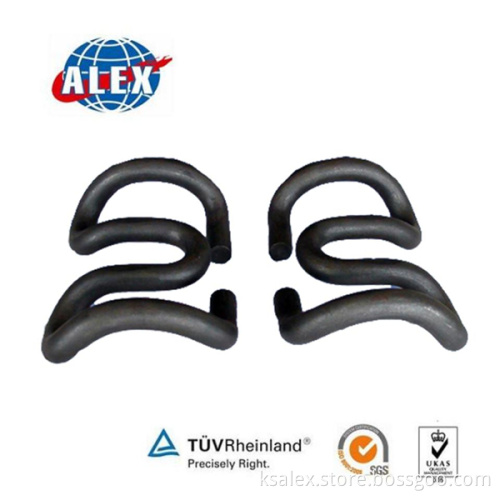

2> SKL Clip
Technical Parameter of The E Clip
Diameter Type Weight (Kg)
13mm SKL1 0.49
13mm SKL3 0.53
13mm SKL12 0.53
13mm SKL14 0.505
Material: 60Si2CrA
Loading Property: Under pressure 8-12KN, the displacement is between 9-12mm.
Fatigue Property: No less than 5 million times.

3> PR Clip
Technical Parameter of The PR Clip
Material 60Si2MnA
Bar Diameter 7/8"
Nominal Toe Load 2,000 lbs
Nominal Rail Seat Clamping Force 4,000 lbs
Working Deflection 0.56"
Weight 2.75 lbs

4> Nabla Clip
Material 60Si2MnA
Loading Property 2500DaN
Hardness HRC51~55
After the first two tests, variation of the height after releasing is only 0.45mm and after three more tests, there is only 0.1mm variation of height

5> Vertical Special Rail Clip
Material 60Si2MnA
Loading Property 2500DaN
Hardness HRC51~55

6> Rail Deenik Clip
Material 60Si2MnA
Diameter 16mm
Hardness HRC51~55
