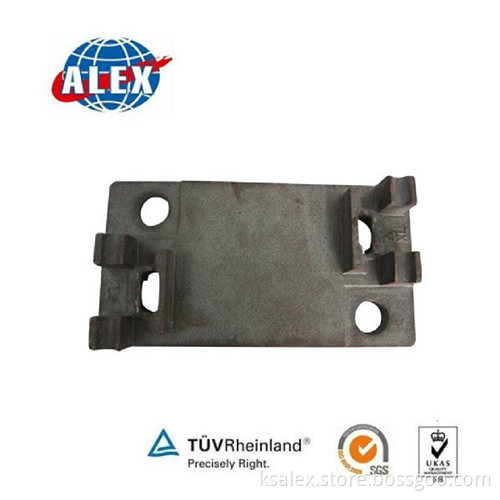

Rail Tie Plate For Rail system, Customized Design Rail Tie Plate , Fastening Rail Tie Plate

Type Dimension Holes Incline Rail Weight(Kg)
Rph 1/160 345/285/127/160x15/13 Ø 26 (4x) 1:40 S 49/S 54 7,86
Rp 01/01/160 345/285/127/160x15/13 Ø 26 (4x) 1:40 S 49/S 54 7,70
Rph 1/210 345/285/127x210x15/13 Ø 26 (4x) 1:40 S 49/S 54 10,55
Rph 1/210 345/285/127x210x15/13 Ø 36,3 (2x) 1:40 S 49/S 54 10,55
Rph 1/210 FVZ 345/285/127x210x15/13 Ø 26 (4x) 1:40 S 49/S 54 10,69
Sph 1(a) 345/350/127x410x15/13 Ø 26 (8x) 1:40 UIC 60 20,60
Rph 6/160 370/310/152x160x15/13 Ø 26 (4x) 1:40 UIC 60 8,44
Rph 6/210 370/310/152x210x15/13 Ø 26 (4x) 1:40 UIC 60 11,32
SZ 60 370/350/152x420x15/13 Ø 26 (8x) 1:40 UIC 60 22,73
Rph 11 Ü 664/554x160 Ø 26 (4x) 1:40 S 54 15,37
Rph 13 Ü 690/570x160 Ø 26 (4x) 1:40 UIC 60 15,27
Rpo 5 345/285/127x160x15/13 Ø 26 (4x) 1:20 S 49/S 54 8

A tie plate, baseplate or sole plate is a steel plate used on rail tracks between flanged T rail and the crossties. The tie plate increases bearing area and holds the rail to correct gauge. They are fastened to wooden ties by means of spikes or bolts through holes in the plate.
The part of the plate under the rail base is tapered, setting the cant of the rail, an inward rotation from the vertical. The usual slope is one in forty ( 1.4 degrees ). The top surface of the plate has one or two shoulders that fit against the edges of the base of the rail. The double-shoulder type is currently used. Older single-shoulder types were adaptable for various rail widths, with the single shoulder positioned on the outside (field side) of the rails. Most plates are slightly wider on the field side, without which the plates tend to cut more into the outsides of the tie, reducing cant angle.
Cast iron can be the welded or fabricated type, depending upon the customers requirements. Our rail tie plate can be made to suit various rail section, i.e. UIC 60, UIC 54, RN 45, 90 A, etc.
We are a leading rail tie plate manufacturer in China. We can also make other rail fastenings such as railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type.
