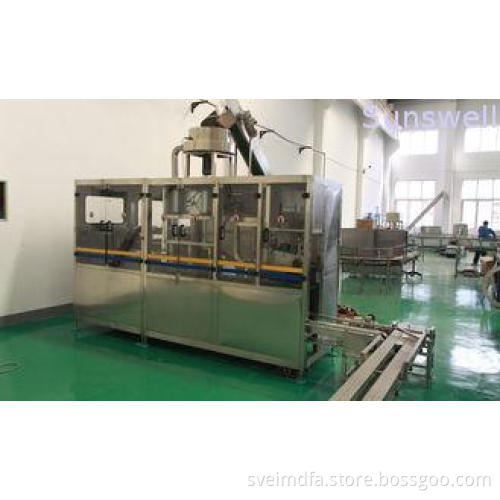

5 Gallon pure water 3-in-1 filling monoblock with rinsing, filling and capping machine
CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles
5 Gallon Water Filling Machine Specifications:
|
Model |
TGX-150 |
|
|
Product capacity |
150 barrel/hour |
|
|
Filling head |
1 |
|
|
Equipment size |
2800×660×1580mm |
|
|
Power supply |
Main machine (KW) |
1.4 |
|
Compressed air |
Air pressure |
0.5Mpa |
|
Gas consumption |
1.5m3/min |
|
|
Washing working position |
circulating water (2 positions) pure water (2 positions) |
Drip working position: 1 pc |
|
consumption |
500-800l/hr |
|
Technical features of 5 gallon water filling machine
- The machine integrates rinser, filler and capper together.
- The machine is of stainless steel, resisting corrosion and easy to clean.
- The main electrical components and gas circuit elements are all of international brand.
Equipment structure of 5 gallon water filling machine
- Automatic bottle loader
- Barrel rinser
- Filler
- Capper
- According to the customer’s requirement, the machine could be equipped with automatic cap separator, automatic leakage inspector, barrel washer, automatic cap loader, shrink wrapper, etc.
