20-63mm PVC Pipe / Sheet Production Line Of Double Output E
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhangjiagang city,Jiangsu province,China |
|---|
20-63mm PVC Pipe / Sheet Production Line Of Double Output Extrusion
Quick Detail of pvc pipe production line DOUBLE OUTPUT EXTRUSION :
PVC pipe double output extrusion line
Suitable 20-63MM diameter
CE&ISO certificate
Description of pvc pipe production line DOUBLE OUTPUT EXTRUSION :
Pvc double pipe extrusion line, 20-63mm diameter,for water supply and drain.

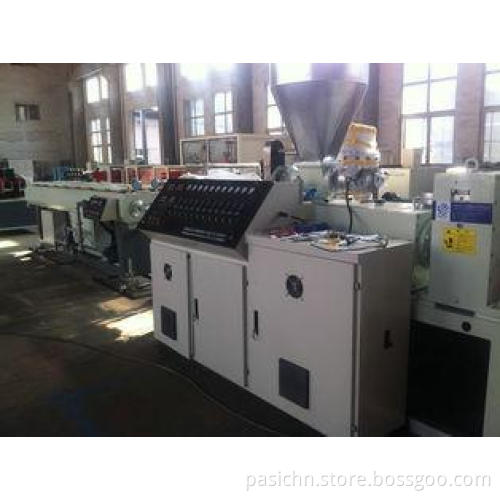

The production line compose by :vacuum loader-extruder-mould-vacuum calibration tank-haul off - cutter - stacker
Applications ofpvc pipe production line DOUBLE OUTPUT EXTRUSION :
Pvc double pipe extrusion line, 20-63mm diameter,for water supply and drain.
1. Suitable to U-PVC,C-PVC,M-PVC pipe extrusion
2. Optional to adopt conical twin screw extruder and parallel twin screw extruder
3. Supply formula guide and staple raw material purchase
4. Follow standard diameter scope as below sheet, flexible to user's reasonable requirement
Specifications of pvc pipe production line DOUBLE OUTPUT EXTRUSION :
Diameter scope (mm) | 16-40 Dual | 20-63 Dual | 20-63 | 50-160 | 63-200 | 160-315 | 315-630 | 560-800 |
Conical extruder | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 | SJZ105/216 |
Extruder Power(KW) | 18.5 AC | 37 AC | 18.5 AC | 37 AC | 37 AC | 55 AC | 110 DC | 160 DC |
Max. capacity (KG) | 120 | 250 | 120 | 250 | 250 | 350 | 800 | 1100 |
Max. Lineal speed (m/min..) | 10 | 15 | 15 | 8 | 3.5 | 3 | 1.2 | 1.3 |
Product Name: | PVC double pipe extrusion line |
Electric consumption(KW): | 80 kw / h |
Water consumption(Tons): | 2tons per hour (the water can be recycled) |
Working voltage: | 380V, 3PHASE, 50HZ(based on customer’s requirements) |
Capacity (kg/h): | 120kgh(based on customer’s requirements) |
Diameter: | 20mm-63mm |
Max hauling speed (m/min) | 13 |
Competitive Advantage of pvc pipe production line DOUBLE OUTPUT EXTRUSION :
- Produce two pipes at same time,can save investment coat in factory building and production,increase the capacity a lot and reduce production time.
- 304 stainless steel made,ABB inventer .Wannan motor.
- Made more stronger for standard parts. It can use for much more long time.
- Meet with CE standard.
1 pvc pipe production line double output extrusion
2 brand supplier of pvc pipe production line double output extrusion
3 our clients of pvc pipe production line double output extrusion
4 expo of pvc pipe production line double output extrusion
5 certificate of pvc pipe production line double output extrusion
