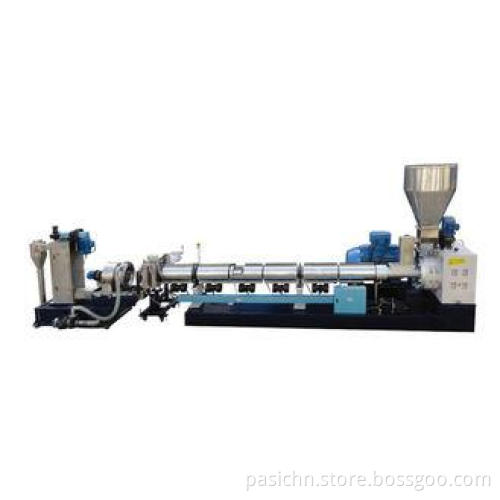

Plastic Granulator Machine Plastic Recycling Machine With Force Feeder
Quick Detail:
| Inverter | ABB |
| PLC control | Simens PLC (Optional) |
| Extruder model | Single screw extruder |
| Temperature controller | Omron |
| Electrical parts | Schneider |
| Granules size | 3-5mm |
| Dimension(L*W*H) | 12x3x3m |
| Pelletizer type | water-ring pelletizer |
| Feeding way | force feeder |
Applications:
Water-ring PE granulation line with force feeder is mainly used for PP, PE Film ,bags and hard plastic recycling, use PE/PP Film, bags and hard plastic as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Specifications:
|
Model |
PPPE-65W |
PPPE-90W |
PPPE-100W |
PPPE-120W |
PPPE-150W |
PPPE-160W |
PPPE-180W |
|
Screw Dia.(mm) |
65 |
90 |
100 |
120 |
150 |
160 |
180 |
|
L/D |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
|
Screw roating speed(r/min) |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
|
Capacity(kg/h) |
80-130 |
180-200 |
200-280 |
250-300 |
300-400 |
400-500 |
500-650 |
Description:
Water-ring PE granulation line with force feeder is composed of Force feeder,extruder ,Hydraulic screen changer, Water ring mould,water ring cover cutter ,Water groove+water tank ,Vertical centrifugal dryer, and Air sending hopper.
Water-ring PE granulation line with force feeder Process flow:
Raw material :PE,PP Films , ,bags and hard plastic
We also have water-ring granulation line with aggregator , strand granulation line with aggregator, and strand granulation line with force feeder. The difference granulation line have their own advantage, you can according to your material to choice the most suitable machine.
Competitive Advantage:
- This line introduces Japanese technique, it can directly put PE/PP material into single-screw extrusion line for granulation after crushed and washing.
- The extruder use large L/D screw,it bears special exhaust equipment and it can wipe off the liquid water content effectively and get high output.
- All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
- Siemens contactor,RKC temperature controller
- This line use water-ring pelletizer, granules are uniform and beautiful.
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
Water-ring PE granulation line with force feeder
Water-ring PE granulation line with force feeder Raw material:
Water-ring PE granulation line with force feeder Final product:
Water-ring PE granulation line with force feeder Our customer
