HDPE / PP Plastic Granulator Machine With Aggregator , CE / SGS
Quick Detail:
Inverter:ABB
PLC control: Simens PLC (Optional)
Extruder model:Single screw extruder
Temperature controller:Omron
Electrical parts:Schneider
Granules size:3-5mm
Dimension(L*W*H):12x3x3m
Applications:
Water-ring PE granulation line with aggregator is mainly used for PP, PE Film and bags recycling, use PE/PP Film and bags as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Description:

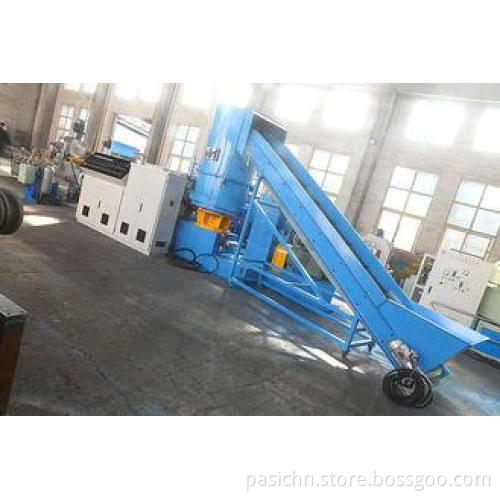

This Water-ring PE granulation line with aggregator is composed of Belt conveyor, gglomerator/compactor,extruder ,Hydraulic screen changer, Water ring mould,water ring cover cutter ,Water groove+water tank ,Vertical centrifugal dryer, and Air sending hopper.
Raw material :PE,PP Films and bags
Water-ring PE granulation line with aggregator Process flow:
Specifications:
|
Model |
Screw diameter(mm) |
L/D |
Extruder Power (kw) |
Compression power(kw) |
Output (kg/h) |
|
PPPE-HS80W |
80 |
25~33 |
45-55 |
37 |
200~250 |
|
PPPE-HS100W |
100 |
25~42 |
55-90 |
45 |
300~350 |
|
PPPE-HS120W |
120 |
25~36 |
90-110 |
55 |
350~450 |
|
PPPE-HS140W |
140 |
25~33 |
110-132 |
55 |
450~600 |
|
PPPE-HS160W |
160 |
25~33 |
132-160 |
75 |
600-800 |
|
PPPE-HS180W |
180 |
25~33 |
160-220 |
90 |
800~1000 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
Water-ring PE granulation line with aggregator
Water-ring PE granulation line with aggregator Raw material:
Water-ring PE granulation line with aggregator Final product:
Water-ring PE granulation line with aggregator Certification
