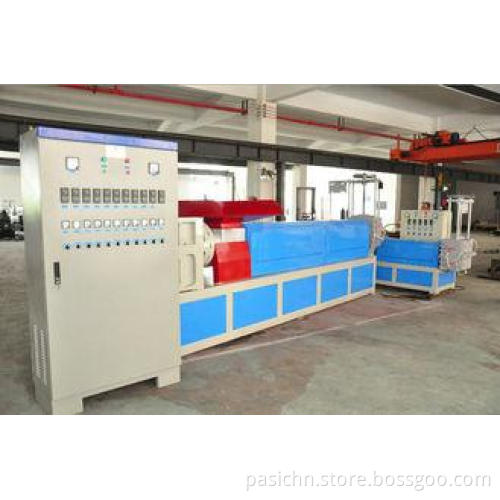

PE / PP / PET Plastic Granules Making Machine With Force Feeder
Quick Detail:
Inverter:ABB
PLC control: Simens PLC (Optional)
Extruder model:Single screw extruder
Temperature controller:Omron
Electrical parts:Schneider
Granules size:3-5mm
Dimension(L*W*H):12x3x3m
Pelletizer type: two stage strand pelletizer
Feeding way: force feeder
Applications:
Two stage strand PE granulation line with force feeder is mainly used for PP, PE hard plastic recycling, use PE/PP hard plastic as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Description:
This Two stage strand PE granulation line with force feeder is composed of Force feeder ,extruder ,Hydraulic screen changer, strand mould, Water tank ,Dryer, pelletizer. Material through extruder plastify and into strand, after cooling water tank cooling and forming, the dryer to remover strips surface water, then cut into 3*3mm grains.
Raw material :BOPP printing film, PP, HDPE, LDPE, LLDPE, TPV, EVA, ABS, PA and PS, etc
Two stage strand PE granulation line with force feeder Process flow:
Specifications:
|
No. |
Name |
Qty |
|
1 |
Force feeder |
1 |
|
2 |
Main extruder(single screw with vaccum degassing) |
1 |
|
3 |
Second extruder (single screw without degassing) |
1 |
|
4 |
Strand mould |
1 |
|
5 |
Water tank |
1 |
|
6 |
Dryer |
1 |
|
7 |
Cutter |
1 |
|
8 |
Electrical cabinet |
1 |
|
Model |
First stage extruder power(kw) |
Second stage extruder power(kw) |
Screw diameter(mm) |
Output (kg/h) |
|
PEPP-80DS |
37-55 |
11-15 |
80 |
120-150 |
|
PEPP-100DS |
55-90 |
15-18.5 |
100 |
150-220 |
|
PEPP-120DS |
75-132 |
15-22 |
120 |
250-300 |
|
PEPP-140DS |
90-132 |
18.5-30 |
140 |
300-400 |
|
PEPP-160DS |
110-160 |
18.5-30 |
160 |
400-650 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
3.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
