Plastic Granulator Machine With Aggregator , Waste Film Pla
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu ,China |
|---|
Plastic Granulator Machine With Aggregator , Waste Film Plastic Granules Making
Quick Detail:
Inverter:ABB
PLC control: Simens PLC (Optional)
Extruder model:Single screw extruder
Temperature controller:Omron
Electrical parts:Schneider
Granules size:3-5mm
Dimension(L*W*H):19x3x3m
Pelletizer type: strand pelletizer
With agglomerator
Applications:
Two stage strand PE granulation line with aggregator is mainly used for PP, PE Film and bags recycling, use PE/PP Film and bags as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Two stage strand PE granulation line with aggregator Process flow :
Description:
Single screw,two stage for plastic recycling granulator :
For heavy printed film,bags,the material is not very clean etc(with best degassing effective)
If you need the pellets for blowing,choosing this!

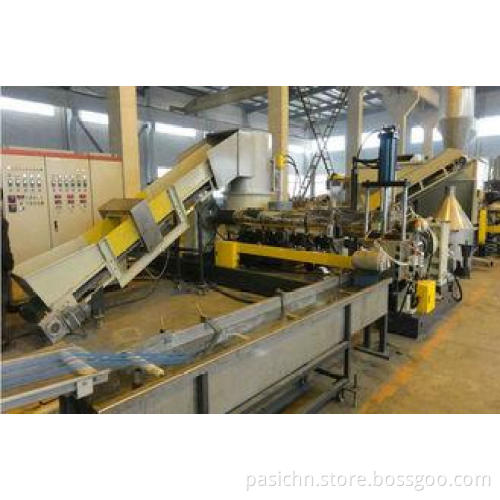

This Two stage strand PE granulation line with aggregator is composed of Belt conveyor ,Agglomerator/compactor,extruder ,Hydraulic screen changer, Strand mould, Water tank ,Dryer, pelletizer.
Raw material :PE,PP Films and bags
Pelletizing system:
1.water-ring rubs surface pelletizing system
2.air-cooling rubs surface pelletizing system
3.strand pulls pelletizing system (noodles)
Different raw material need different pelletizing system and screw design etc.So need further discussion!
Specifications:
|
No. |
Name |
Qty |
|
1 |
Belt conveyor |
1 |
|
2 |
Metal detector |
1 |
|
3 |
Agglomerator |
1 |
|
4 |
Main extruder(single screw with vaccum degassing) |
1 |
|
5 |
Second extruder (single screw without degassing) |
1 |
|
6 |
Strand mould |
1 |
|
7 |
Water tank |
1 |
|
8 |
Strong wind dryer |
1 |
|
9 |
Cutter |
1 |
|
10 |
Electrical cabinet |
1 |
|
Model |
First stage extruder power(kw) |
Second stage extruder power(kw) |
Screw diameter (mm) |
Output (kg/h) |
|
PPPE-HS80DS |
37-55 |
11-15 |
80 |
200-250 |
|
PPPE-HS100DS |
55-90 |
15-18.5 |
100 |
250-350 |
|
PPPE-HS120DS |
75-132 |
15-22 |
120 |
350-450 |
|
PPPE-HS140DS |
90-132 |
18.5-30 |
140 |
450-600 |
|
PPPE-HS160DS |
110-160 |
18.5-30 |
160 |
600-800 |
Competitive Advantage:
Two stage strand PE granulation line with aggregator
1. High capacity with aggregate.
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4.Siemens contactor,RKC temperature controller
I will help you to confirm the most suitable machine type,just leave message to me now!
Any feedback will be highly appreciated!
Two stage strand PE granulation line with aggregator
Two stage strand PE granulation line with aggregator Raw material:
Two stage strand PE granulation line with aggregator Final product:
Two stage strand PE granulation line with aggregator Certification
