ABS / TPV Plastic Granulator Machine With Force Feeder Plas
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu ,China |
|---|
ABS / TPV Plastic Granulator Machine With Force Feeder Plastic Recycling Machines
Quick Detail:
Inverter:ABB
PLC control: Simens PLC (Optional)
Extruder model:Single screw extruder
Temperature controller:Omron
Electrical parts:Schneider
Granules size:3-5mm
Dimension(L*W*H):18x3x3m
Pelletizer type: strand pelletizer
Feeding way: force feeder
Applications:
Strand PE granulation line with force feeder is mainly used for PP, PE hard plastic recycling, use PE/PP hard plastic as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Description:

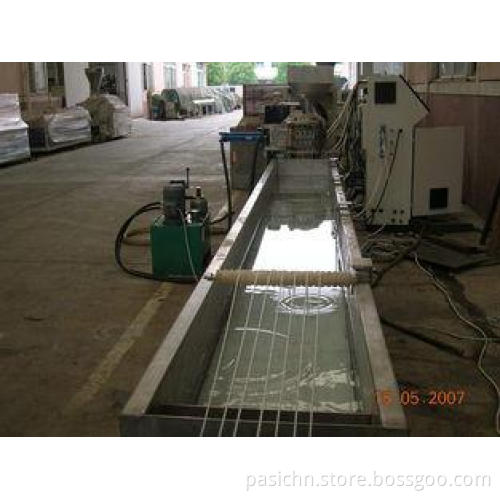

This Strand PE granulation line with force feeder is composed of Force feeder ,extruder ,Hydraulic screen changer, strand mould, Water tank ,Dryer, pelletizer. Material through extruder plastify and into strand, after cooling water tank cooling and forming, the dryer to remover strips surface water, then cut into 3*3mm grains.
Raw material :BOPP printing film, PP, HDPE, LDPE, LLDPE, TPV, EVA, ABS, PA and PS, etc
Strand PE granulation line with force feeder Process flow :
Specifications:
|
Model |
PPPE-65S |
PPPE-90S |
PPPE-100S |
PPPE-120S |
PPPE-150S |
PPPE-160S |
PPPE-180S |
|
Screw Dia.(mm) |
65 |
90 |
100 |
120 |
150 |
160 |
180 |
|
L/D |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
18-42 |
|
Screw roating speed(r/min) |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
10-150 |
|
Capacity(kg/h) |
80-130 |
180-200 |
200-280 |
250-300 |
300-400 |
400-500 |
500-650 |
Competitive Advantage:
Strand PE granulation line with force feeder
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4.Siemens contactor,RKC temperature controller
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
Strand PE granulation line with force feeder
Strand PE granulation line with force feeder
