Automatic Strand PE Plastic Granulator Machine With Aggrega
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu ,China |
|---|
Automatic Strand PE Plastic Granulator Machine With Aggregator
Quick Detail:
Inverter:ABB
PLC control: Simens PLC (Optional)
Extruder model:Single screw extruder
Temperature controller:Omron
Electrical parts:Schneider
Granules size:3-5mm
Dimension(L*W*H):15x3x3m
Applications:
Strand PE granulation line with aggregator is mainly used for PP, PE Film and bags recycling, use PE/PP Film and bags as raw material to make grains , and has the features of novel design, compact structure, reasonable layout, stable, facilitating the maintenance and debugging, Low-noise, low-power consumption.
Description:
This Strand PE granulation line with aggregator is composed of Belt conveyor , Agglomerator/compactor,extruder ,Hydraulic screen changer, Strand mould, Water tank ,Dryer, pelletizer.
Raw material :PE,PP Films and bags
Strand PE granulation line with aggregator Process flow :
Specifications:
|
Model |
Screw diameter(mm) |
L/D |
Extruder Power (kw) |
Compression power(kw) |
Output (kg/h) |
|
PPPE-HS80S |
80 |
25~33 |
45-55 |
37 |
200~250 |
|
PPPE-HS100S |
100 |
25~42 |
55-90 |
45 |
300~350 |
|
PPPE-HS120S |
120 |
25~36 |
90-110 |
55 |
350~450 |
|
PPPE-HS140S |
140 |
25~33 |
110-132 |
55 |
450~600 |
|
PPPE-HS160S |
160 |
25~33 |
132-160 |
75 |
600-800 |
|
PPPE-HS180S |
180 |
25~33 |
160-220 |
90 |
800~1000 |
Competitive Advantage:
Strand PE granulation line with aggregator
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4.Siemens contactor,RKC temperature controller

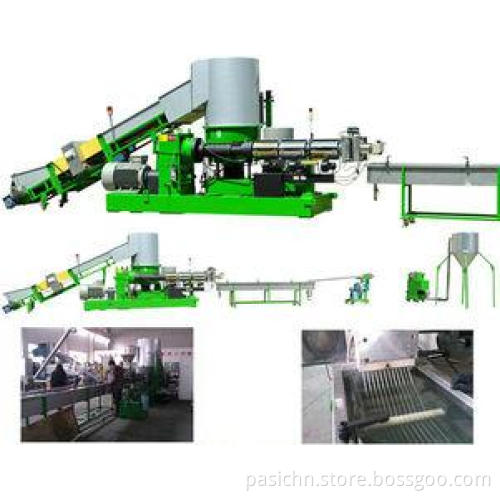

Strand PE granulation line with aggregator
Strand PE granulation line with aggregator Raw material
Strand PE granulation line with aggregator Final product
