Conical Twin Screw Extruder PVC Extrusion Machine For Ceiling Panel
Quick Detail:
The PVC ceiling is made by PVC and some additives. It is mostly used in the kitchen and washroom decoration.
It has the characteristics of the light weight, moisture-proof, heat insulation and it is not easy to fire, absorb dust, but easy to paint, install.
Description:

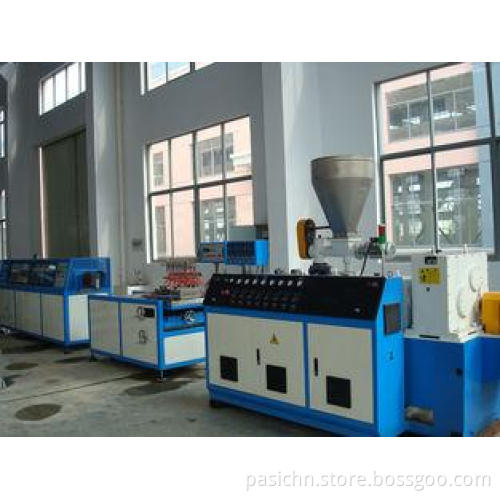

The unit is optimized in design, referring to the newest foreign technology. The unit has the advantages of even plasticizing, small velocity of cutting, high output, long service-life and so on. The unit is composed of conical double-screw extruder, vacuum calibration table, haul off, cutter, foil machine, stack rack, etc.
Applications:
It is used to make the PVC ceiling panels, which mainly used in the kitchen and washroom decoration. PVC ceiling panel extrution line 1. board thickness 6~9mm 2. length 6~12m
Specifications:
|
Model |
YF108 |
YF180 |
YF300 |
|
Max Width (mm) |
108 |
180 |
300 |
|
Extruder model |
SJZ51/105 |
SJZ55/110 |
SJZ65/132 |
|
Motor power (kw) |
18.5 |
22 |
37 |
|
Output (kg/h) |
100 |
100 |
150-200 |
Competitive Advantage:
The product of the PVC ceiling machine is smooth, beautiful, and no harm odor, besides it is not easy to be out of shape.
There are many patterns of the PVC ceiling, such as the assortments of milky white, cream color, acid blue, and the patterns of flower, parquet, bamboo and peach. And of course, the patterns and colors of the PVC ceiling are done according to customers’ requirements.
