Waste Plastic Bottle / PET Flakes Washing Line With Pipelin
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu ,China |
|---|

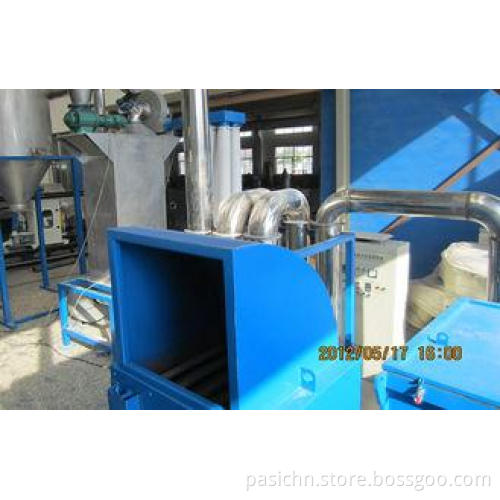

Waste Plastic PET Flakes Washing Line With Pipeline Dryer
Quick Detail:
PET washing line pipeline dryer
+Dryer in Advanced design
+Reliable performance
+Simple operation and convenient maintenance
+CE certificated and ISO9001
Description:
PET washing line pipeline dryer, also called pipeline type drier, adopting twice circulate heating system, is our newly developed Advanced drying equipments, and show the features of automatic feeding, high hot airflow speed, fully mixing of airflow and materials, big drying strength, lower dust.
The part contacting material is made of stainless steel, never rust, and pollutes other material. Design adopts semiautomatic control, and only need set heating temperature when working. It can be made different length according to different requirement, and adopt big rotary radius to reduce resistance.
Principle: it adopts electric heating pipe to heat, then the radiator on heating pipe will radiate heat, heat air, fan will blow hot air, hot air and material rotate in sealed pipe, vapor surface water, and realize drying aim.
Applications:
PET washing line pipeline dryer is widely used in kinds of plastic, such as plastic sheet, film and pellet dry.
Hot Air Dryer is suitable for dry plastic flakes. It can dry the raw materials quickly and with higher capacity.
Specifications:
|
Model |
GDGZ-Ⅰ |
GDGZ-Ⅱ |
|
Power(kw) |
41.5 |
55.5 |
|
Pipe diameter(mm) |
168 |
219 |
|
Width(mm) |
1200 |
1200 |
|
Length(mm) |
4500 |
5400 |
|
Height(mm) |
2200 |
2200 |
|
Heating power(kw) |
36 |
48 |
|
Blowing fan power(kw) |
5.5 |
7.5 |
Competitive Advantage:
Polestar Machinery a professional factory for manufacturing series waste plastic recycling equipment (PET bottle recycling; PE/PP film,bags recycling, HDPE bottle /PP barrel recycling, and PP PE film pelletizing ,PP PE flakes pelletizing ,PP/PE/PVC corrugated pipe extruder etc).
If you want more details of our PET bottle washing machine/waste plastic recycling machine/ plastic pelletizing line, please do not hesitate to let me know!.Welcome to our factory!
PET washing line pipeline dryer:
Brand supplier of PET washing line pipeline dryer:
Certificate of PET washing line pipeline dryer:
Shipment of PET washing line pipeline dryer:
