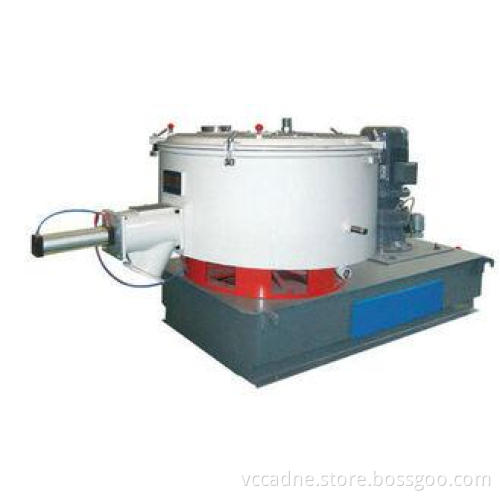

1000L 7.5Kw Cooling High Speed Mixers With Spiral Bevel Gea

Descrition:

1. The inside barrel of Heating & Cooling Mixer are made of stainless steel; the outside baiTel of heating Mixer are also in stainless steel, It can resist the corruption of DOP and there is a ￠550mm stainless steel material adding bucket up the pot cover.

2. The cooling Mixer is equipped with carrying – pole type blades.

3. Electric beating device:equipped with temperature tesing device & warm accuse table.

4. The Main roller is sealed in 88888

5. the digital display (made in Changzhou)

6. Siemens contractor

7. the opening & material unloading of the cover adopts liquid pressure control system.

8. decompression starting device : It will decompress the electirc pressure when we start the machine ,It can protect the electric net.

9. Standard electric box 1 pc; banisters bandrail 1 unit,

Applications:

This machine is widely used in plastic mixing, drying and coloring all kinds of resin such as PVC, PP, PE, etc. It can cool down the material quickly and wipe off the remnant gas after hot mixing in order to make the material easier to storage and dispatching.

Specifications:

I. Name: Horizontal Cooling Mixer

Model: SHL-W1000

1 ) Mixing tank

A. total capacity: 1000L, effective volume: 600L

B. shape: horizontal cylindrical, double-layer structure, can be cooled by water

C. inside barrel: made by SUS304, δ = 6mm, inner surface 200# polishing treatment

D. barrel support rib: made by Q235-A, δ = 16mm

E. barrel end face flange: made by Q235-A, δ = 16mm, 6mm stainless steel inwall, 200 # polished treatment

F. outer barrel body: made by Q235, δ = 5mm

2 ) Stirring paddle

A. material: made by SUS304, δ = 10mm, 4 groups (8 pcs), 200 # polishing treatment

B. rotation speed of stirring wing: 128r/min

C. structure of stirring wing: made up of four groups of positive and negative blades.

materials move back and forth under the effect of positive and negative blade to reach uniform mixing

3 ) Transmission part

A. spindle material: the part contacting with materials are made ​​of SUS304, and the remaining 45.

B. structure: stirring paddle is fixed on the spindle by bolts

4 ) Barrelhead

A. material: made by SUS304, δ = 6mm, inner surface 200# polishing treatment

B. sealing: sealing parts of the barrelhead adopt white foam rubber seal

C. the barrelhead is provided with a feed port, exhaust port, access port, etc.

D. opening way: pneumatic, 60 °

5 ) Discharge port device

A. material: SUS304, inner surface 200# polishing treatment

B. structure: DN200 pneumatic butterfly valve

C. pneumatic butterfly valve blade material: SUS304

6 ) Reducer & Motor

A. reducer type: spiral bevel gear reducer

B. motor power: 7.5Kw

7 ) Shaft seal part

A. PTFE fiber braided packing + labyrinth seal

B. air is blown from the labyrinth seal ring to the mixing tank. This design is to prevent the possibility of products entering into the shaft seal.

8 ) Electrical instrumentation

A. the main electrical elements adopt Siemens (Suzhou)

B. the host control uses time relay

C. the electrical cabinet uses simple dustproof structure

9 ) Safety device

A. lid of access port of the host is provided with a contact switch. The safety design ensures that the stirring wing can rotate, after the lid is in off state.
