Automatic 1 Tons Water Purifying Machine With Hydranautics
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China Mainland |
|---|
Automatic 1 Tons Water Purifying Machine With Hydranautics Filter Membrane
Quick Detail:
1. Main material: SUS304
2. Capacity range: 1 tons per hour.
3. Main pump brand: Nanfang pump
4. Ultra filter membrane brand: Hydranautics
5. Main electric component brand: Mitsubishi
6. Certificate: CE, SGS
7. Easy operate

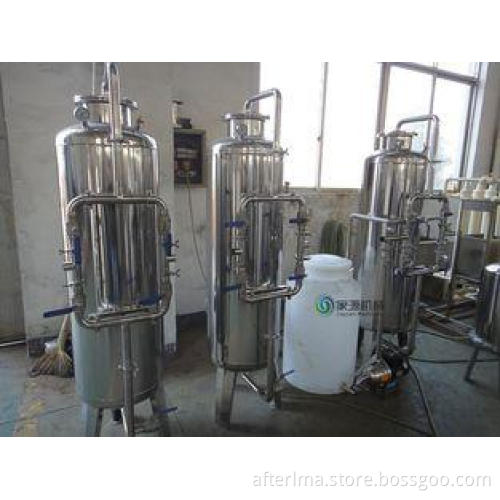

1 Tons per hour SUS304 Mineral water treatment plant
Description:
Our mineral water treatment system is planned and designed according to different water quality of different customers; therefore, it’d be better for customers to provide us the water quality test report so that we can design the optimal water treatment equipment for each customer.
The following process is an example for water with normal requested water quality.
Water source → Water supply pump → Multi-media filter→ Activated carbon filter → Sodium ion filter →5μm precision filter → Hollow ultra filter system → Ultraviolet sterilization lamp/Ozone generator sterilizer →Purified water storage tank → Purified water pump → Filling machine
Filters
UF (ultra filter) device
Sterilizing device
Application
- food and beverage industry
- electronic industry
- medicine industry
- petroleum industry
- chemical industry
- pre-treatment of RO system and pure water treatment
- water reclamation
- biotechnology industry
- surface water treatment
Specifications:
Complete mineral water treatment plant is consist of the following equipments
|
Description |
Qty |
Remarks |
|
Raw water tank |
1 pc |
Normally prepare by user to save the shipping cost/Supply by our company |
|
Booster pump |
1 unit |
Nanfang Pump |
|
Quartz sand filter |
1 unit |
Includes up-down distributor, valves |
|
Active carbon filter |
1 unit |
Includes up-down distributor, valves |
|
Water softener |
1 unit |
Includes up-down distributor, valves |
|
Security filter |
1 unit |
5um filter cartridge |
|
PH adjustment system |
1 unit |
|
|
Ultra-filtration system |
1 unit |
|
|
Backwash pump |
1 unit |
Nanfang pump |
|
Ozone generator |
1 unit |
Matched |
|
Ozone mixing tower |
1 unit |
Prepare by users |
|
CIP cleaning system |
1 unit |
Include water tank, security filter, pump, etc |
|
UF dosing system |
1 unit |
|
|
Pressure gauge1 pc |
1batch |
includes pure water conductivity monitor |
|
Flow meter |
1batch |
|
|
Pipeline and valves |
1batch |
Up to actual demand |
|
Electric control system |
1 set |
PLC control |
Competitive Advantage:
1. Stainless steel plate thickness of filters is 4mm, more durable.
2. Be apt to clean the inside with the manhole design.
3. Machine component can be adjustable according to customer’s requirement.
4. More beautiful appearance.
5. Easy to backwash.
6. Multi-phases pump protected without water
7. Purified water high water level auto stop, low water level auto start
8. Protected when no power, poor power, larger electrical current short circuit, creep age of electricity
