Auto Water Bottling Filling Machines Electric 500 ml Juice

Auto Water Bottling Filling Machines Electric Juice Can Filling Line

Quick Detail:

1. Product: CGF32-32-10 mineral water filling machine

2. Model:CGF32-32-10

3. Main Material: SS304

4. Production capacity: 12000-15000bph(500ml)

5. Usage: Fill pure/mineral/distilled water and so on

6. Dimension: 3500*2200*2250mm

7. Warranty: 1year free

CGF32-32-10 Mineral water filling machine

Description:

Jiayuan CGF32-32-10 mineral water filling machine CGF washing, filling ,capping 3 in 1 unit is a new type equipment, which base on years’ usual practice and adopt the advanced technology, and absorb many clients’ views . Automatic bottle water bottling machine meets the client’s requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient. Automatic bottle water bottling machine is mainly used to non-carbonated beverage (pure water and mineral water.

Application:

This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
integrates bottle washing, filling and capping into one monobloc unit.

Specifications:

1) Feature

• The CGF32-32-10 mineral water filling machine adopts advanced human-machine interface control. High quality international name brand key components
• Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
• Spring type rinsing catcher can wash both inside and outside of the bottle
• High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
• Magnetic powered cap device ensures tightness and prevents damage of the caps
• Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
• Built-in safeguard mechanism ensures the safety of operator and machine.
• High efficient air clean filter system ensures high sanitary requirements
• Low overall machine noise
• Self-lubricating system imported from America provides continuous smooth operation

2) Technical parameter

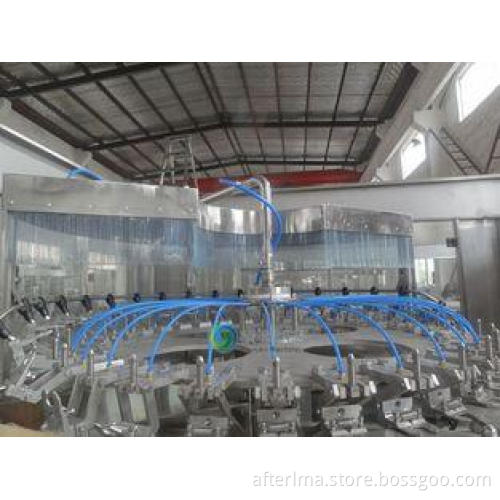

3) Pictures:

Washing head

Filling head

Capping head

Competitive Advantage:

Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

1. Bottled water production line
2. Carbonated soft drinks production line
3. Hot-fill juice and tea production line
4. 5 Gallon bottled water production line
5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
