C Type High Speed Precision Mechanical Press Machine With Automatic Oil Lubrication
Features:
* High rigidity alloy frame dealing with thermal aging, which means anti-vibration and minimum distortion * Infinite variable speed, touch screen human-machine interface, easy operation
* Imported PLC controller, high reliability
* Low inertia clutch and brake which means engaging smoothly and braking rapidly
* Automatic oil lubrication
* Rolling bearings for crank and pitman
* Super long guided gib and air sac balancer.

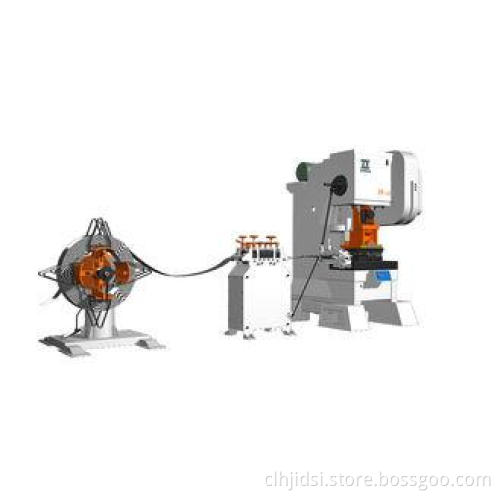

With the designation of 3D CAD, finite element force analysis and mode analysis, VH series C type high-speed precision power presses have achieved the top class of presses in the world. The presses will especially meet the requirement of hardware, electron, EI accessories, communication device, home appliance and micro motor production. With auto feeder, the presses will realize high efficiency and precision production.
Specification:
| Item | Unit | VH-16 | VH-25 | VH-45 | VH-65 | |||||||||
|
Nominal Pressure |
kN | 160 | 250 | 450 | 650 | |||||||||
|
Nominal Pressure Stroke |
mm | 1.2 | 1.6 | 1.6 | 2 | |||||||||
| Stroke Length | mm | 10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | 20 | 30 | ||
|
No.of Strokes per minute |
SPM | 150-650 | 150-600 | 150-550 |
150 -600 |
150 -550 |
150 -500 |
150 -550 |
150 -500 |
15 -450 |
150 -400 |
150 -350 |
||
|
Max. Die Height |
mm | 210 | 205 | 200 | 220 | 215 | 210 | 265 | 260 | 255 | 325 | 320 | ||
|
Die Height Ajustment |
mm | 50 | 50 | 50 | 50 | |||||||||
|
Throat Depth |
mm | 150 | 155 | 235 | 270 | |||||||||
|
Working Table Surface Size |
F.B. | mm | 290 | 300 | 450 | 520 | ||||||||
| L.R. | mm | 480 | 500 | 740 | 850 | |||||||||
|
Hole Size of Working Table |
F.B. | mm | 80 | 82 | 120 | 130 | ||||||||
| L.R. | mm | 150 | 150 | 300 | 300 | |||||||||
| Slide Surface | F.B. | mm | 140 | 158 | 290 | 340 | ||||||||
| L.R. | mm | 250 | 260 | 340 | 420 | |||||||||
| Stemhole | mm | Ø40x60 | Ø40x75 | Ø50x75 | Ø50x75 | |||||||||
|
Distance between Uprights |
mm | 180 | 180 | 300 | 350 | |||||||||
|
Thickness of Bolster |
mm | 60 | 75 | 110 | 120 | |||||||||
| Main Motor | kW | 2.2 | 3 | 5.5 | 11 | |||||||||
|
Overall Dimension |
F.B. | mm | 1200 | 1200 | 1620 | 2300 | ||||||||
| L.R. | mm | 1000 | 1089 | 1353 | 1580 | |||||||||
| Height | mm | 1800 | 2012 | 2471 | 2900 | |||||||||
| Air Pressure | MPa | 0.55 | 0.55 | 0.55 | 0.55 | |||||||||
| Gross Weight | kg | 2100 | 2600 | 4200 | 6800 | |||||||||
Competitive Advantage:
1. Besides universal models, we can specially design machines according to customer requirements
2. Long-time quality stability of running, less maintenance, easy operation
3. Any information from customers are replied in 24 hours
4. Any spare parts of machines can be sent to customers in 24 hours
5. Engineer/technician can be dispatch to customers in 72 hours
