F Frame High Speed Double Crank Power Presses, Mechanical Press Machines

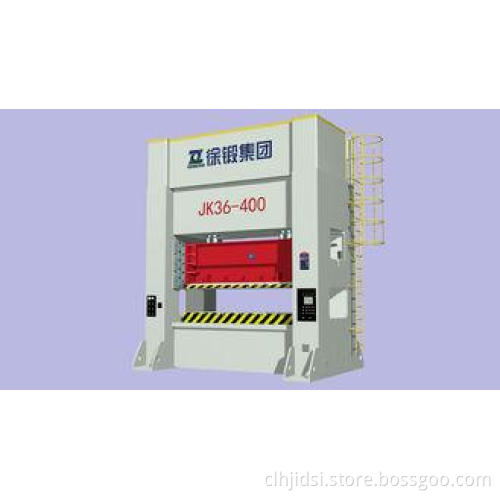

JK36 Series H Type(F Frame) High-Speed Precision Double Crank Power Press
Features:
* Welded pre-stress combined-type structure make sure the machine body high rigid, and stress eliminating heat ageing process ensure the machine body deformation.
* H type double points structure with the ability of resisting edge load suitable for large progressive dies punching.
* Low inertial clutch brake, ensure steady transmission, low noise, and long serve life.
* Slider with lengthened eight-surface guide rails and good wear resistance make sure of high-precision retaining.
* The machine equipped with electric die height adjusting device, the die height adjusted by motor, and the counter indicates numerical variable.
* Slider balance device effectively to balance slider operation and die height.
* Intermittent automatic thin oil Lubrication system, make sure of good lubrication for the completed machine.
* The machine adopts Rotary transformer, Mitsubishi PLC and Touching Screen Control, also with outputting feeding signal and testing interface.
* Frequency conversion stepless speed adjustment
* Equipped with cumulative counter and work shifts Counter
Specification:
| Item | Unit | JK36-200 | JK36-300 | JK36-400 | JK36-500 | JK36-630 | JK36-800 | |
| Nominal Pressure | kN | 2000 | 3000 | 4000 | 5000 | 6300 | 8000 | |
| Nominal Pressure Stroke | mm | 2 | 2 | 3 | 3 | 3 | 3 | |
| Slide Stroke | mm | 30 | 30 | 30 | 30 | 30 | 30 | |
| No. of Strokes per minute | spm | 75-150 | 65-130 | 60-120 | 50-110 | 40-100 | 40-80 | |
| Max. die Height | mm | 450 | 480 | 550 | 580 | 600 | 650 | |
| Die Height Adjustment | mm | 80 | 80 | 100 | 100 | 100 | 100 | |
| Working Table Surface Size | F.B. | mm | 900 | 1000 | 1100 | 1200 | 1400 | 1500 |
| L.R. | mm | 2100 | 2600 | 3000 | 3300 | 3600 | 4000 | |
| Thickness | mm | 200 | 220 | 240 | 260 | 280 | 300 | |
| Slide Surface Size | F.B. | mm | 900 | 1000 | 1100 | 1200 | 1400 | 1500 |
| L.R. | mm | 2100 | 2600 | 3000 | 3300 | 6003 | 4000 | |
| Side Opening (L.R) | mm | 700 | 800 | 900 | 1000 | 1100 | 1250 | |
| Main Motor | kW | 37 | 45 | 55 | 75 | 75 | 90 | |
| Overall Height | mm | ≤4000 | ≤4500 | ≤5000 | ≤5200 | ≤5500 | ≤6000 | |
| Gross Weight | kg | 50000 | 65000 | 85000 | 10500 | 125000 | 160000 | |
Competitive Advantage:
1. Besides universal models, we can specially design machines according to customer requirements
2. Long-time quality stability of running, less maintenance, easy operation
3. Any information from customers are replied in 24 hours
4. Any spare parts of machines can be sent to customers in 24 hours
5. Engineer/technician can be dispatch to customers in 72 hours
