Customized CNC Punch Press Machine With Platform, Pneumatic
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

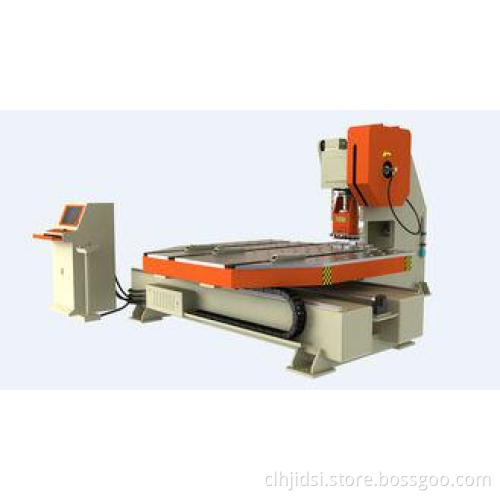

Customized CNC Punch Press Machine With Platform, Pneumatic Long Clamps
NCP Series NC Punch Press With Platform
Features:
The punch press is applied to the industries of screen mesh, can making, bottle caps making, electrical cabinet, motor, electrical appliance, lock manufacturing, instrument, solar heaters, building decoration materials, hardware, car, bicycle and etc.
* With the standard of G code programming, or through the CAD drawings transferred into machining program directly, which make the graphics programming quickly and easily.
* The structure of WYSIWYG makes operating easily.
* Powerful mould library management
* Pneumatic long clamps, reliable clamping
* One-button operation, easily and conveniently.
* High quality ball screw, guide and servo motor, ensure long service life and high precision.
Specification:
| Item | Unit | NCP-P10B | NCP-P15B | NCP-P20B | NCP-P25B | NCP-P30B | NCP-P35B |
| Nominal Pressure | Kn | 250, or customized | |||||
| Maximum Thickness for Machining | mm | 6 | |||||
| Size for Processing Sheet | mm | 1000×1000 | 1500×1000 | 2000×1000 | 2500×1250 | 3000×1250 | 3500×1250 |
| Throat Depth | mm | 1250, or customized | |||||
| Maximum Weight for Processing | kg | 50 | 70 | 90 | 105 | 125 | 145 |
| Punching Speed | HPM | 100 | |||||
| Travelling Speed of Machine Table | m/min | 20m/min | |||||
| Machining Accuracy | mm | ±0.1mm | |||||
| Air flow | CBM | 0.1㎥ | |||||
| Air pressure | MPa | 0.5MPa(5.0kgf/c㎡) | |||||
| Power | 380V, 50Hz | ||||||
| Gross Weight | kg | 5300 | 5800 | 6200 | 7000 | 7800 | 8200 |
Competitive Advantage:
1. Besides universal models, we can specially design machines according to customer requirements
2. Long-time quality stability of running, less maintenance, easy operation
3. Any information from customers are replied in 24 hours
4. Any spare parts of machines can be sent to customers in 24 hours
5. Engineer/technician can be dispatch to customers in 72 hours
