High Speed Thick Turret CNC Punch Press Equipment, Hydraulic Pressing Machine

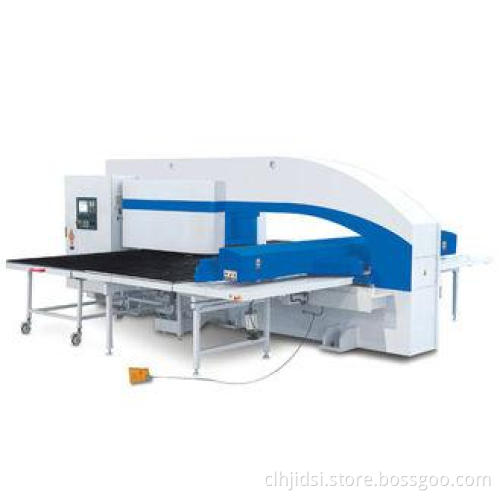

HPQ Series CNC Turret Punch Press
Features:
* New type CNC turret punch with high speed, more efficiency and lower noise
* Thick turret with sleeve structure, better guiding and higher precision, longer life-span of tooling
* Keeping touch index tool position, proprietary technology from Nisshinbo
* Rapid loading and unloading tools
* Main parts (turret parts, components of index tool and reducer box, etc) supplied by Nissinbo company
* High speed hydraulic ram head and hydraulic system of H+L from Germany, max 1750cpm with no load
* Siemens 802D CNC system
* Wheel function, four-axis synchronised control function
*Automatic movement function of clamps (option)
Specification:
| Item | Unit | HPQ-3044 | HPQ-3047 | HPQ-3048 | HPQ-3057 | HPQ-3058 | |
| Nominal Pressure | kN | 300 | 300 | 300 | 300 | 300 | |
| Max. sheet dimension (including first positioning) | mm | 1250x2500 | 1250x4000 | 1250x5000 | 1500x4000 | 1500x5000 | |
| Max. sheet thickness | Carbon steel sheet | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Stainless steel sheet | mm | 4 | 4 | 4 | 4 | 4 | |
| Max. one-time punching diameter | mm | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | |
| Dies | 40 | 40 | 40 | 40 | 40 | ||
| Punching accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Punching frequency | cpm | 1750 | 1750 | 1750 | 1750 | 1750 | |
|
Max. punching frequency (1mm step 6mm punching stroke) |
cpm | 690 | 690 | 690 | 690 | 690 | |
|
Max. punching frequency (25.4mm step 6mm punching stroke) |
cpm | 330 | 330 | 330 | 330 | 330 | |
| Max. sheet speed | m/min | 102 | 102 | 102 | 102 | 102 | |
| Turrent speed | rpm | 30 | 30 | 30 | 30 | 30 | |
| Axes of control | 5(X, Y, Z, T, C) | 5(X, Y, Z, T, C) | 5(X, Y, Z, T, C) | 5(X, Y, Z, T, C) | 5(X, Y, Z, T, C) | ||
| Main power | Kw | 21 | 23 | 24 | 23 | 24 | |
| Air pressure | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Overall dimensions | Length | mm | 5800 | 5800 | 5800 | 6300 | 6300 |
| Width | mm | 2300 | 4000 | 5000 | 4000 | 5000 | |
| Height | mm | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Weight | kg | 14500 | 15500 | 16500 | 18500 | 19500 | |
Competitive Advantage:
1. Besides universal models, we can specially design machines according to customer requirements
2. Long-time quality stability of running, less maintenance, easy operation
3. Any information from customers are replied in 24 hours
4. Any spare parts of machines can be sent to customers in 24 hours
5. Engineer/technician can be dispatch to customers in 72 hours
