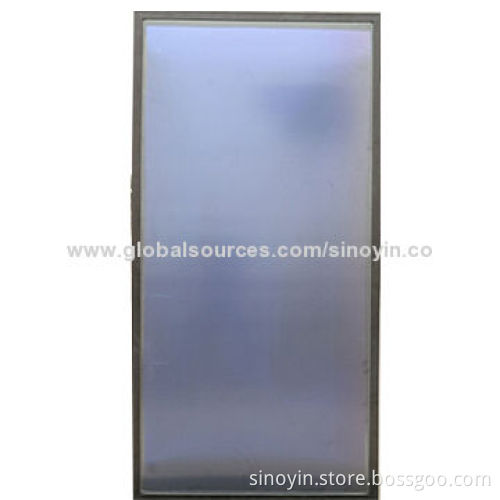

Flat Panel Solar Collector with Laser Welding, High Light Transmittance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2,050 x (W) 1,050 x (H) 80mm

Pipe type: grid

Plate core copper tube material:

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 37kg

Medium volume: 1.3L

Pipe line way: vertical

Interface: Ø22 copper pipe

Absorber: Blue Titanium (Germany)

Absorptivity: >87%

Emissivity: <13%

Base plate: aluminum plate 0.5mm

Thermal insulation layer material: beyond white tempered glass 3.2

Light transmittance: 91.5%

Thermal efficiency: 0.72

K50 degree: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/h.m²

Number of series: <8

Header pipe: 0.6mm exhaust
