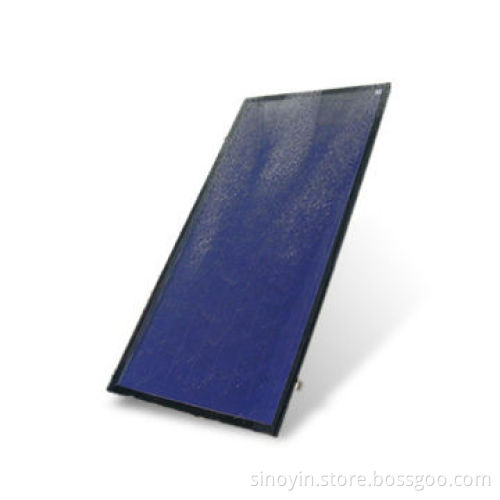

Blue Titanium Coating with Laser Welding Absorber Solar Collector, SRCC and Solar Keymark

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions (L x W x H): 2,050 x 1,050 x 80mm

Gross area: 2.15m²

Aperture area: 1.93m²

Absorber area: 2.05m²

Cover material: low iron, ultra white tempered glass 3.2mm

Cover transmission: 90%

Weight: 37kg

Absorber: aluminum

Surface treatment: sputtering (Germany imported blue titaniumcoating)

Absorptivity: 95%±2%

Emissivity: 5%±2%

Header material: copper TP2/CA1220

Header tuber size: .22mm x thickness 0.6mm G1/2 inches

Riser material: copper TP2/CA1220

Riser tuber size: .8mm x thickness 0.6mm

Working pressure: 0.75Mpa

Test pressure: 1.2Mpa, keeps 5 minutes

Maximum power G=1000W/m² per collector: 1.25kW

Heat loss coefficient a1: 4.574W/m².K

Heat loss coefficient a2: 0.03W/m².K

Maximum stagnation temperature for ambient conditions of1000W/m² and 30°C: 160°C

Insulation material and thickness: fiberglass,35±5mm

Frame: aluminum alloy

Back plate: galvanized steel

20ft container quantities: 129 pieces

40ft container quantities: 266 pieces

40ft high container quantities: 296 pieces

Packing: full carton box into wooden case for LCL and cartonbox for FCL
