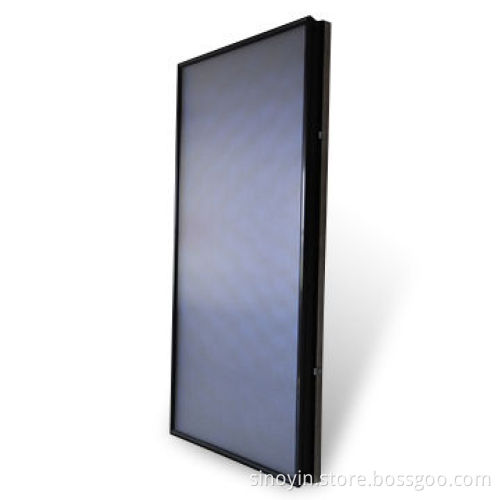

Solar Water Heater Collector, Solar Keymark, EN12975-approved, Measures 2,050 x 1,050 x 95mm

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions (L x W x H): 2,050 x 1,050 x 95mm

Gross area: 2.15m²

Aperture area: 1.96m²

Absorber area: 1.96m²

Number of covers: one

Cover material: low iron and tempered glass

Cover thickness: 3.2mm

Cover transmission: >96%

Weight: 38kg

Absorber of solar collector (imported from Germany company):aluminum board

Surface treatment: sputtering (cermet)

Absorptivity: 95 ±2%

Emissivity: 5 ±2%

Construction type: grid type

Header material: copper TP2/CA1220

Header tuber size: .22mm x thickness 0.8mm

Riser material: copper TP2/CA1220

Riser tuber size: .8mm x thickness 0.75mm

Working pressure: 0.75mPa

Test pressure: 1.2mPa, keeps 30 minutes

Maximum power: 1,000W/m² per collector: 1.52kW

Thermal efficiency: 0.795

Heat loss coefficient a1: 2.889W/m²K

Heat loss coefficient a2: 0.026W/m²K

Maximum stagnation temperature for ambient conditions of1,000W/m² and 30°C: 190.6°C

Insulation material: fiberglass

Insulation thickness: 50 ± 5mm

Density: 35kg/cube

Frame: aluminum alloy

Frame color: silver or black

Back plate: aluminum plate

Sealing gasket: EPDM

Packing:

Dimensions: 2,070 x 1,160 x 110mm
Wooden case for LCL, carton box for FCL

Loading quantity:

20-foot container quantity: 119pcs
40-foot container quantity: 236pcs
40-foot high container quantity: 256pcs

Dimensions: 2,070 x 1,160 x 110mm

Wooden case for LCL, carton box for FCL

20-foot container quantity: 119pcs

40-foot container quantity: 236pcs

40-foot high container quantity: 256pcs
