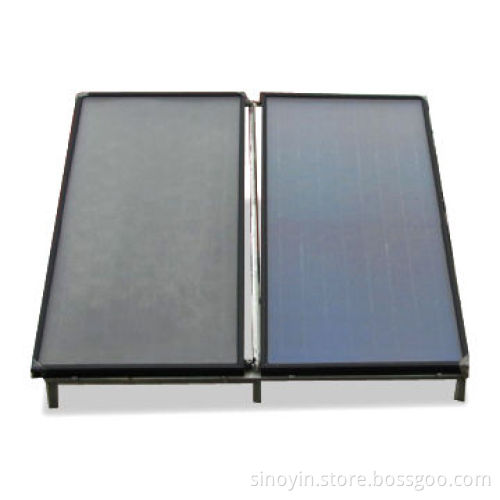

Solar water heater collector with black chromium endothermic coating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Size (L x W x H): 2,000 x 1,000 x 80mm

Gross area: 2m²

Aperture area: 1.86m²

Absorber area: 1.86m²

Cover material: tempered glass

Cover thickness: 3.2mm

Cover transmission: 90%

Weight: 35kg

Absorber black chrome: aluminum board 0.4 to 0.5mm

Surface treatment: sputtering (cermet)

Absorptivity: e95%

Emissivity: d5%

Construction type: grid type

Header material: copper TP2/CA1,220

Header tuber size (D x T): 22 x 0.6mm, G1/2 inch

Header amount: 2

Riser material: copper TP2/CA1220

Riser tuber size (D x T): 8 x 0.6mm

Riser amount: 8

Work pressure: 0.6mPa

Test pressure: 1.2mPa, keeps 5 minutes

Insulation material: fiberglass

Insulation thickness: 30mm

Density: 35kg/cube

Frame: aluminum alloy

Frame color: silver or black

Sealing gasket: EPDM

Maximum stagnation temperature: 170°C
