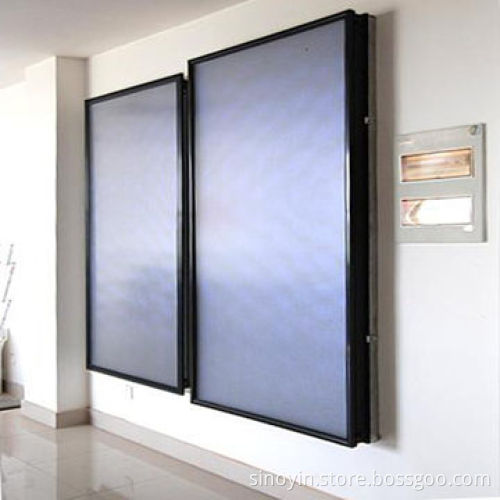

High-quality and Lowest Price Flat Plate Solar Collector with SRCC Solar Keymark, CE and CCC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Suitable for on-roof, flat-roof and facade mounting

Dimensions: 2050 x 1050 x 95mm

Gross area: 2.15

Absorber area: 2.05

Aperture area: 1.98

Dry weight: 38kg

Liquid volume: 0.46g

Nominal flow rate: 21gph (0.35gpm)

Nominal pressure loss: 160mbar (water, propylene-glycol,68F)

Collector connections: 2 connectors at top, 12mm forcompression fittings

Absorber type: 12mm/serpentine, laser-welded to aluminumabsorber plate

Absorber coating: highly selective on aluminum

Absorption/emission: 95/5%

Covering: low iron, clear and solar safety glass (ESG)

Transmission of covering: 88%

Cover impact-resistant passed optional impact-resistant testsfollowing EN 12975-2

Insulation fiber glass/1.2-inch

Collector frame material: powder-coated aluminum

Heat loss coefficient: a1 (k1) 3.95W/(m²K)

Heat loss coefficient: a2 (k2) 0.0165W/(m²K)

Maximum stagnation temperatures: 375.8°F (191°C)

Maximum operating pressure: 10 bars

Certifications: SRCC, CE and CCC

Advantages:

Germany imported high efficiency selective blue titaniumcoating
Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance >92%
Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested
Long lifetime, large absorber area,good warm keeping, Europeanand North America special designed

Germany imported high efficiency selective blue titaniumcoating

Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested

Long lifetime, large absorber area,good warm keeping, Europeanand North America special designed
