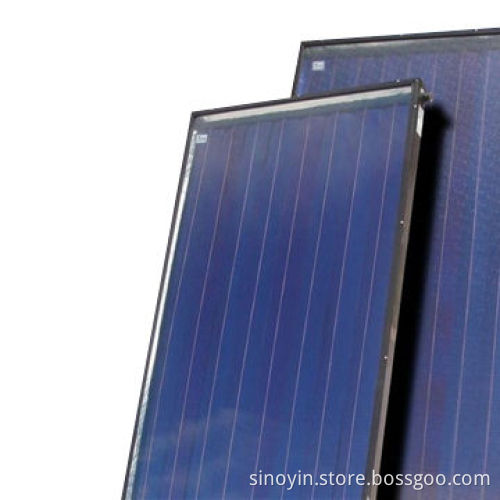

Flat Plate Solar Collector with SRCC Solar Keymark, CE, CCC and ISO9001-2008 Certified

Flat Plate Solar Collector with SRCC Solar Keymark, CE, CCC and ISO9001-2008 Certified

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 95mm

Gross area: 2.15m²

Aperture area: 1.96m²

Absorber area: 1.96m²

Number of cover: one

Cover material: low iron and tempered glass

Cover thickness: 3.2mm

Cover transmission: >96%

Weight: 38kg

Absorber of solar collector (imported from Germany company):aluminum board

Surface treatment: sputtering (cermet)

Absorptivity: 95 ±2%

Emissivity: 5 ±2%

Construction type: grid

Header material: copper TP2/CA1220

Header tuber size: Ø22mm x (T) 0.8mm

Riser material: copper TP2/CA1220

Riser tuber size: Ø8mm x (T) 0.75mm

Working pressure: 0.75MPa

Test pressure: 1.2MPa, keeps 30 minutes

Maximum power, G 1000W/m² per collector: 1.52kW

Thermal efficiency: 0.795

Heat loss coefficient (a1): 2.889W/m².K

Heat loss coefficient (a2): 0.026W/m².K

Maximum stagnation temperature for ambient conditions of1000W/m² and 30°C: 190.6°C

Insulation material: fiberglass

Insulation thickness: 50 ±5mm

Density: 50kg/cube

Frame: aluminum alloy

Frame colors: silver or black

Back plate: aluminum

Sealing gasket: EPDM

Packing:

Dimensions: 2070 x 1160 x 110mm

Germany imported high efficiency selective blue titaniumcoating

Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze-resistant, rain penetration, exposure,hail impact, external and internal shock tested

Long lifespan, large absorber area, nice warm keeping
