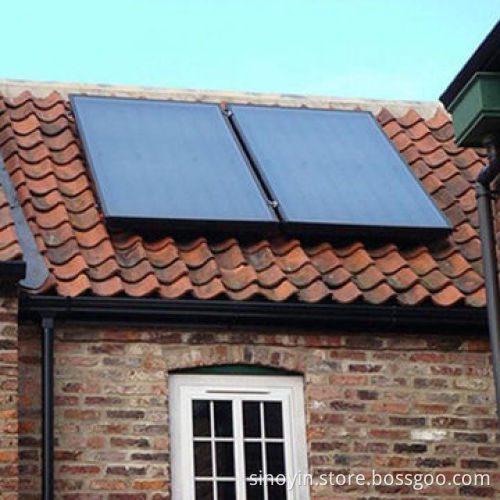

Solar water collector, measures 2050 x 1050 x 95mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: 2050 x 1050 x 95mm

Gross area: 2.15

Absorber area: 2.05

Aperture area: 1.98

Dry weight: 38kg

Liquid volume: 0.46g

Nominal flow rate: 21GPH (0.35gpm)

Nominal pressure loss: 160mbar (water, propylene-glycol,68F)

Collector connections: 2 connectors at top, 12mm forcompression fittings

Absorber type: 12mm/serpentine, laser-welded to aluminumabsorber plate

Absorber coating: highly selective on aluminum

Absorption/emission: 95/5%

Covering: low iron, clear and solar safety glass (ESG)

Transmission of covering: 88%

Cover impact resistance passed optional impact resistance testsfollowing EN12975-2

Insulation fiber glass/1.2 inches

Collector frame material: powder coated aluminum

Heat loss coefficient: a1 (k1) 3.95W/(m².K)

Heat loss coefficient: a2 (k2) 0.0165W/(m².K)

Maximum stagnation temperatures: 375.8°F (191°C)

Maximum operating pressure: 10bar
