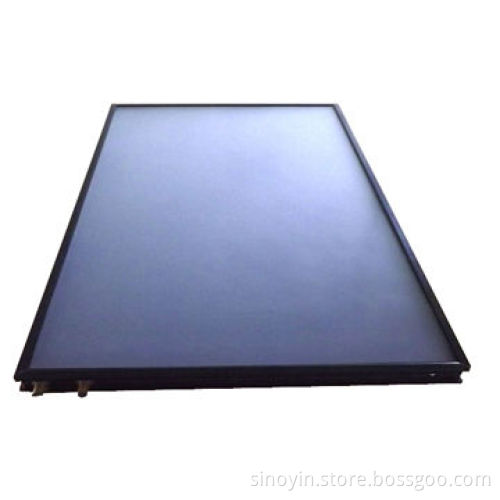

Solar water heater collector with blue titanium absorber

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 80mm

Pipe type: grid

Plate core copper tube material:

Header pipe: 0.8mm exhaust

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 34kg

Medium volume: 1.3L

Pipe line way: vertical

Interface: Ø22 copper pipe

Absorber: Blue Titanium (Germany)

Absorptivity: >95%

Emissivity: <5%

Base plate: aluminum plate 0.5mm

Thermal insulation layer material beyond white tempered glass3.2 Light transmittance 91.5%

Thermal efficiency: 0.76

K50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/hm²

The number of series: <8

Certifications: Solar Keymark, SRCC, CE, ISO 9001-2000 andCCC

Products advantages:

Germany imported high efficiency selective blue titaniumcoating
Laser welding between whole absorber panel and copper tube,high strength thicken heavy-duty aluminum frame
Special low-iron tempered glass with transmittance >92%
Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested
Long lifetime, large absorber area, nice warm keeping,European, North America special designed

Germany imported high efficiency selective blue titaniumcoating

Laser welding between whole absorber panel and copper tube,high strength thicken heavy-duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested

Long lifetime, large absorber area, nice warm keeping,European, North America special designed
