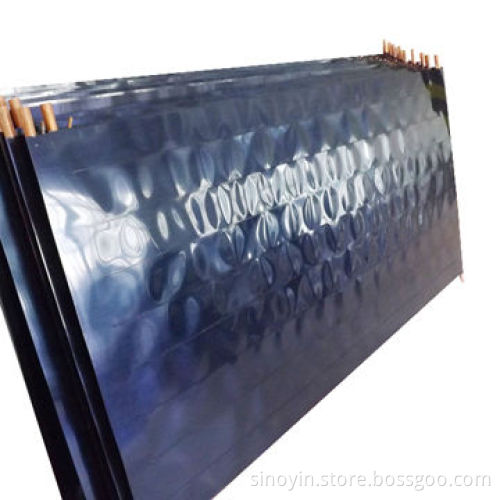

Solar Collector with SRCC, Solar Keymark and CE Certifications

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 80mm

Pipe type: grid

Plate core copper tube material: header pipe: 0.8 mmexhaust

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 37kg

Medium volume: 1.3L

Pipe line way: vertical

Interface: Ø22mm copper pipe

Absorber: blue titanium (Germany)

Absorptivity: >95%

Emissivity: <5%

Base plate: aluminum plate, 0.5mm

Thermal insulation layer material beyond white tempered glass:3.2mm

Light transmittance: 91.5%

Thermal efficiency: 0.77

K 50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/hm²

Number of series: <8

Certifications: Solar Keymark, SRCC, CE, ISO 9001-2000 andCCC

Advantages:

Germany imported selective blue titanium coating
Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance more than92%
Mechanical load, freeze resistance, rain penetration, exposure,hail impact

Germany imported selective blue titanium coating

Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance more than92%

Mechanical load, freeze resistance, rain penetration, exposure,hail impact
