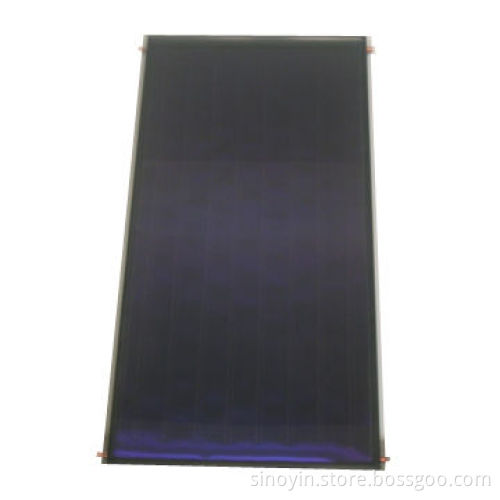

Flat Panel Solar Collector with Blue Titanium Absorber, Passed Solar Keymark SRCC Certifications

Flat Panel Solar Collector with Blue Titanium Absorber, Passed Solar Keymark SRCC Certifications

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 95mm

Gross area: 2.15m²

Aperture area: 1.96m²

Absorber area: 1.96m²

Number of cover: one

Cover material: low iron and tempered glass

Cover thickness: 3.2mm

Cover transmission: >96%

Weight: 38kg

Absorber of solar collector (imported from Germany company):aluminum board

Surface treatment: sputtering (cermet)

Absorptivity: 95 ±2%

Emissivity: 5 ±2%

Construction type: grid

Header material: copper TP2/CA1220

Header tuber size: Ø22mm x (thickness) 0.8mm

Riser material: copper TP2/CA1220

Riser tuber size: Ø8mm x (thickness) 0.75mm

Working pressure: 0.75MPa

Test pressure: 1.2MPa, keeps 30 minutes

Maximum power, G=1,000W/m² per collector:1.52kW

Thermal efficiency: 0.795

Heat loss coefficient (a1): 2.889W/m².K

Heat loss coefficient (a2): 0.026W/m².K

Maximum stagnation temperature for ambient conditions of1,000W/m² and 30°C: 190.6°C

Insulation material: fiberglass

Insulation thickness: 50 ±5mm

Density: 35kg/cube

Frame: aluminum alloy

Frame color: silver or black

Back plate: aluminum

Sealing gasket: EPDM

Packing:

Wooden case for LCL and carton box for FCL
Dimensions: 2070 x 1160 x 110mm

Loading quantity:

20ft container: 119 pieces
40ft container: 236 pieces
40ft high container: 256 pieces

Wooden case for LCL and carton box for FCL

Dimensions: 2070 x 1160 x 110mm

20ft container: 119 pieces

40ft container: 236 pieces

40ft high container: 256 pieces
