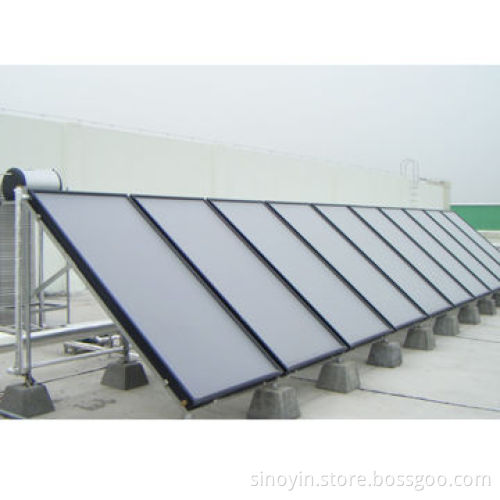

Solar Glazed Collector with Blue Titanium Absorber and High Absorptivity

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 95mm

Gross area: 2.15m²

Aperture area: 1.955m²

Absorber area: 1.955m²

Number of cover: one

Cover material: low iron and tempered glass

Cover thickness: 3.2mm

Cover transmission: >96%

Weight: 38kg

Absorber of solar collector (imported from Germany company):aluminum board

Surface treatment: sputtering (cermet)

Absorptivity: 95 ±2%

Emissivity: 5 ±2%

Construction type: grid

Header material: copper TP2/CA1220

Header tuber size: Ø22mm x (thickness) 0.8mm

Riser material: copper TP2/CA1220

Riser tuber size: Ø8mm x (thickness) 0.75mm

Working pressure: 0.75MPa

Test pressure: 1.2MPa, keeps 30 minutes

Maximum power, G = 1000W/m²/collector: 1.52kW

Thermal efficiency: 0.795

Heat loss coefficient (a1): 2.889W/m²K

Heat loss coefficient (a2): 0.026W/m²K

Maximum stagnation temperature for ambient conditions of1000W/m² and 30°C: 190.6°C

Insulation material: fiberglass

Insulation thickness: 50 ±5mm

Density: 35kg/cube

Frame: aluminum alloy

Frame color: silver or black

Back plate: aluminum

Sealing material: EPDM

Packing: wooden case for LCL and carton box for FCL
