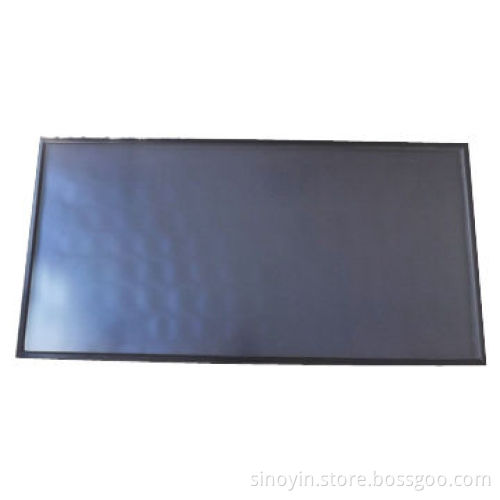

Solar Water Heater Collector, 1.3L Medium Volume

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Material: plate core copper tube

Header: 0.8mm

Exhaust gross area: 2.15m²

Lighting area: 1.97m²

Medium volume: 1.3L

Pipe line way: vertical

Interface: copper pipe

Absorber: blue titanium (Germany)

Absorptivity: >95%

Emissivity: <5%

Base plate: aluminum plate and 0.5mm

Thermal insulation layer material beyond white tempered glass3.2 light transmittance 91.5%

Thermal efficiency: 0.77%

K50°C: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/h.m²

Number of series: <8

Net weight: 37kg

Certifications: Solar keymark, SRCC, CE and CCC

Advantages:

Germany imported high efficiency selective blue titaniumcoating
Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance >92%
Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested
Long lifetime, large absorber area,good warm keeping, Europeanand North America special designed

Germany imported high efficiency selective blue titaniumcoating

Laser welding between whole absorber panel and copper tube,high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze resistance, rain penetration, exposure,hail impact, external and internal shock tested

Long lifetime, large absorber area,good warm keeping, Europeanand North America special designed
