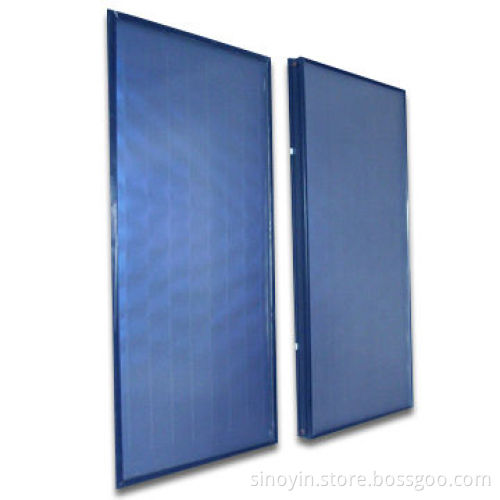

Solar Collector with Bluetec Eta Plus Selective Flat Plate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Bluetec eta plus is produced using an air-to-air vacuum coatingprocess

The so-called magnetron sputtering is the method used forapplying the coating to the metal substrate

Collector efficiency: 75.5%, a1 = 4.3 and a2 = 0.012

Coating efficiency: absorption 95 and emission 5%

Standard coating thickness: 0.12mm

Ultrasonic welding

Solar keymark certificated

This process sets new technical standards by achievingabsorptance values of 95% and emittance values of 5%

For the production of eta plus, the blue tec team has designedan air to air coating line for the continuous coating of metalbands

The magnetron sputter process employed by blue tec to apply thecoating to the metal substrate meets even the most stringentquality requirements

It generates no harmful exhaust gas or chemicals

The process is completely free of emissions

Only electrical energy is required: approximately 1 kWh perm² of surface

However, over 20 years, the absorber band eta plus producesmore than 10,000 kWh of solar energy and thus has an excellentenergy balance

The eta plus coating is a ceramic metal compound

This so called CERMET (ceramic metal compound) is comprised ofseveral single layers in which metal particles are embedded in aceramic matrix

Due to scattering effects and they absorb radiation within acertain wavelength range

The metal content of the eta plus coating system graduallydecreases towards the surface

The coating applied to the surface of the substrate is apassivating metal coating

It serves as a diffusion barrier as well as a means ofcorrosion protection for the metal substrate

The inner layers are the functional layers, in which most ofthe light is absorbed

The top layer is a pure ceramic and also serves as ananti-reflection coating and as an extremely durable protection forthe entire system
