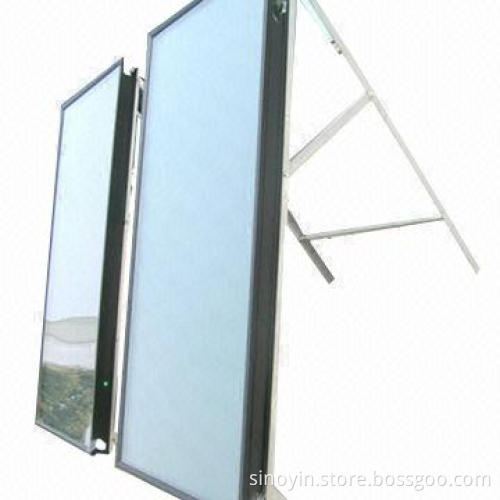

Flat Panel Solar Collector, Aluminum Base Plate 0.5mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Pipe type: grid

Plate core copper tube material

Header pipe: 0.6 mm exhaust

Gross area: 2.05m²

Lighting area: 1.80m²

Net weight: 41kg

Medium volume: 1.3L

Pipeline way: vertical

Interface: (D) 22 copper pipe

Absorber: blue titanium (Germany)

Absorptive: >95%

Emissive: <5%

Base plate: aluminum plate 0.5mm

Thermal insulation layer material beyond white tempered glass: 3.2

Light transmittance: 91.5%

Thermal efficiency: 0.76

K 50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/hm²

Number of series: <8
