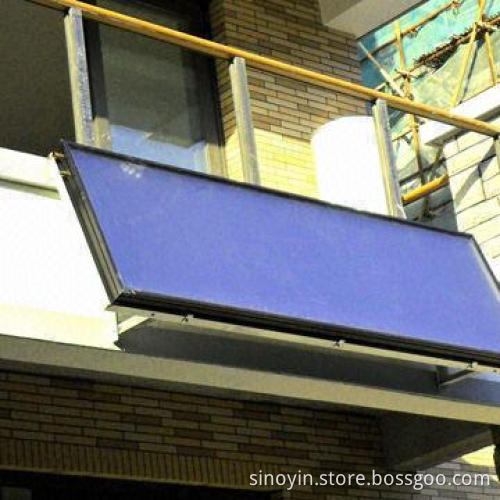

Solar panel collector, aluminum base plate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2050 x (W) 1050 x (H) 80mm

Pipe type: grid

Plate core copper tube material

Header pipe: 0.6mm exhaust

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 37kg

Medium volume: 1.3L

Pipe line way: vertical

Interface: 22 copper pipe

Absorber: blue titanium (Germany)

Absorptivity: > 87%

Emissivity: <13%

Base plate: aluminum plate, 0.5mm

Thermal insulation layer material beyond white tempered glass: 3.2

Light transmittance: 91.5%

Thermal efficiency: 0.72

K 50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2mPa

Working pressure: 0.6mPa

Suggest flow: 70 to 80L/Hm²

Number of series: >8
