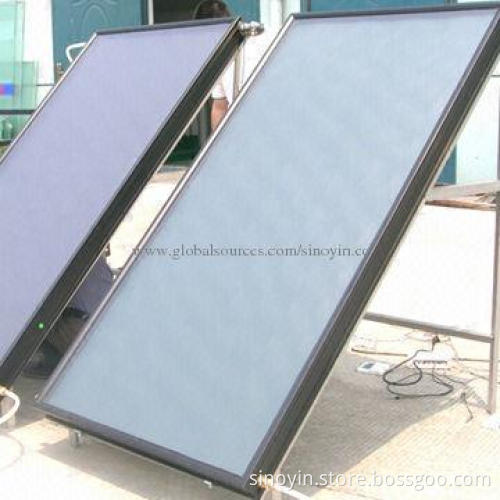

Flat Plate Solar Collector with EPDM Frame, SRCC/Solar Keymark Certification

Flat Plate Solar Collector with EPDM Frame, SRCC/Solar Keymark Certification

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions (L x W x H): 2,050 x 1,050 x 80mm

Pipe type: grid

Plate core copper tube material:

Header pipe: 0.8 mm exhaust

Gross area: 2.15m²

Lighting area: 1.97m²

Net weight: 37kg

Medium volume: 1.3L

Pipeline way: vertical

Interface: Ø22 copper pipe

Absorber: blue titanium (Germany)

Absorptive: >95%

Emissive: <5%

Base plate: aluminum plate, 0.5mm

Thermal insulation layer material beyond white tempered glass: 3.2

Light transmittance: 91.5 %

Thermal efficiency: 0.77

K 50°: 0.95

Heat transfer medium: ethylene glycol solution

Test pressure: 1.2MPa

Working pressure: 0.6MPa

Suggest flow: 70 to 80L/hm²

Number of series: <8

Certifications: SRCC, CE and CCC

Specification:

Germany imported high efficiency selective blue titanium coating
Laser welding between whole absorber panel and copper tube, high strength thicken heavy-duty aluminum frame
Special low-iron tempered glass with transmittance >92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested
Long lifetime, large absorber area, nice warm keeping, European and North America special designed

Advantages:

S-type tube flat plate solar collector,have gotten the line patent in China
We are famous factory to produce S-type tube flat plate solar collector, no any welding on the tube, no leakage
Laser welding between whole absorber panel and copper tube
High strength thicken, heavy duty aluminum frame, better than some technology of ultrasonic welding or heat-conducting glue in some factories
Instant heat efficiency of the collector can up to 81.1%, much higher than the 72% standard, rare in China
Germany imported high efficient selective blue titanium coating
Use best copper tubes in domestic, copper brand is hailiang
Special low-iron tempered glass with transmittance more than 92%
Mechanical load, freeze resistance

Header pipe: 0.8 mm exhaust

Germany imported high efficiency selective blue titanium coating

Laser welding between whole absorber panel and copper tube, high strength thicken heavy-duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested

Long lifetime, large absorber area, nice warm keeping, European and North America special designed

S-type tube flat plate solar collector,have gotten the line patent in China

We are famous factory to produce S-type tube flat plate solar collector, no any welding on the tube, no leakage

Laser welding between whole absorber panel and copper tube

High strength thicken, heavy duty aluminum frame, better than some technology of ultrasonic welding or heat-conducting glue in some factories

Instant heat efficiency of the collector can up to 81.1%, much higher than the 72% standard, rare in China

Germany imported high efficient selective blue titanium coating

Use best copper tubes in domestic, copper brand is hailiang

Special low-iron tempered glass with transmittance more than 92%

Mechanical load, freeze resistance
