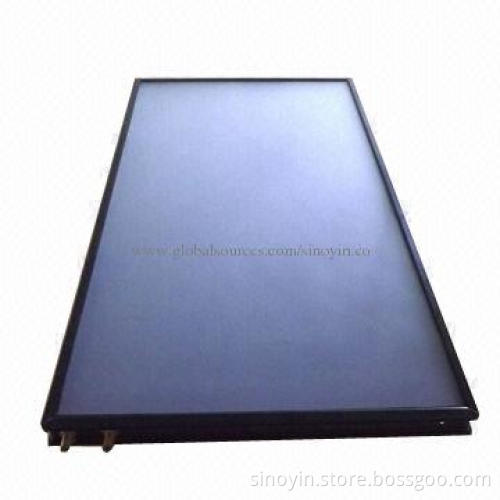

Solar Thermal Collector, Weighs 38kg, Measures 2,050x1,050x95mm

Solar Thermal Collector, Weighs 38kg, Measures 2,050x1,050x95mm

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Dimensions: (L) 2,050 x (W) 1,050 x (H) 95mm

Gross area: 2.15m^²

Aperture area: 1.96m²

Absorber area: 1.96m²

Number of cover: 1

Cover material: low iron and tempered glass

Cover thickness: 3.2mm

Cover transmission: >96%

Weight: 38kg

Absorber of solar collector (imported from Germany company): aluminum board

Surface treatment: sputtering (cermet)

Absorptivity: 95 ±2%

Emissivity: 5 ±2%

Construction type: grid

Header material: TP2/CA1220 copper

Header tuber size: Ø22 x (thickness) 0.8mm

Riser material: TP2/CA1220 copper

Riser tuber size: Ø8mm x (thickness) 0.75mm

Working pressure: 0.75MPa

Test pressure: 1.2MPa, keeps 30 minutes

Maximum power (G: 1000W/m² per collector): 1.52kW

Thermal efficiency: 0.795

Heat loss coefficient a1: 2.889W/m^².K

Heat loss coefficient a2: 0.026W/m^².K

Maximum stagnation temperature for ambient conditions of 1000W/m^² and 30°C: 190.6°C

Insulation material: fiberglass

Insulation thickness: 50 ±5mm

Density: 35kg/cube

Frame: aluminum alloy

Frame colors: silver or black

Back plate: aluminum

Sealing gasket: EPDM

Certifications: Solar Keymark, SRCC, CE, ISO 9001-2000 and CCC

Packing:

Carton dimensions: 2070 x 1160 x 110mm

Loading quantity:

20ft container: 119 pieces
40ft container: 236 pieces
40ft high container: 256 pieces

Advantages:

Germany imported high efficiency selective blue titanium coating
Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance of >92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock test

Carton dimensions: 2070 x 1160 x 110mm

20ft container: 119 pieces

40ft container: 236 pieces

40ft high container: 256 pieces

Germany imported high efficiency selective blue titanium coating

Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance of >92%

Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock test
