High-quality Flat Plate Solar Collector with SRCC Solar Keymark, CE and CCC Certificates

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

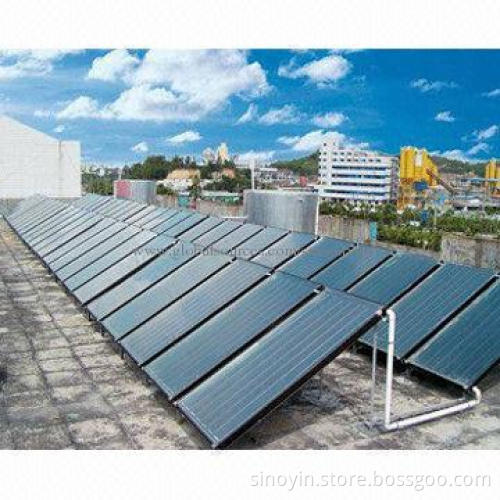

Suitable for on-roof, flat-roof and facade mounting

Dimensions: 2,050 x 1,050 x 95mm

Gross area: 2.15

Absorber area: 2.05

Aperture area: 1.98

Dry weight: 38kg

Liquid volume: 0.46g

Nominal flow rate: 21gph (0.35gpm)

Nominal pressure loss: 160mbar (water, propylene-glycol, 68F)

Collector connections: 2 connectors at top, 12mm for compression fittings

Absorber type: 12mm/serpentine, laser-welded to aluminum absorber plate

Absorber coating: highly selective on aluminum

Absorption/emission: 95/5%

Covering: low iron, clear and solar safety glass (ESG)

Transmission of covering: 88%

Cover impact-resistant passed optional impact-resistant tests following EN 12975-2

Insulation fiber glass/1.2-inch

Collector frame material: powder-coated aluminum

Heat loss coefficient: a1 (k1) 3.95W/(m2K)

Heat loss coefficient: a2 (k2) 0.0165W/(m2K)

Maximum stagnation temperatures: 375.8°F (191°C)

Maximum operating pressure: 10 bars

Certifications: SRCC, CE and CCC

Specifications:

Germany imported high efficiency selective blue titanium coating
Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame
Special low-iron tempered glass with transmittance >92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested
Long lifetime, large absorber area,good warm keeping, European and North America special designed

Advantages:

S-type tube flat plate solar collector, with gotten the line patent in China
We are famous factory to produce S-type tube flat plate solar collector
No any welding on the tube, no any leakage
Laser welding between whole absorber panel and copper tube, high strength thicken heavy-duty aluminum frame, much better than some technology of ultrasonic welding or heat-conducting glue in some factories
The instant heat efficiency of the collector can up to 81.1%, much higher than the 72%
standard, very rare in China
Germany imported high efficient selective blue titanium coating, use best copper tubes

Germany imported high efficiency selective blue titanium coating

Laser welding between whole absorber panel and copper tube, high strength thicken heavy duty aluminum frame

Special low-iron tempered glass with transmittance >92%

Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested

Long lifetime, large absorber area,good warm keeping, European and North America special designed
