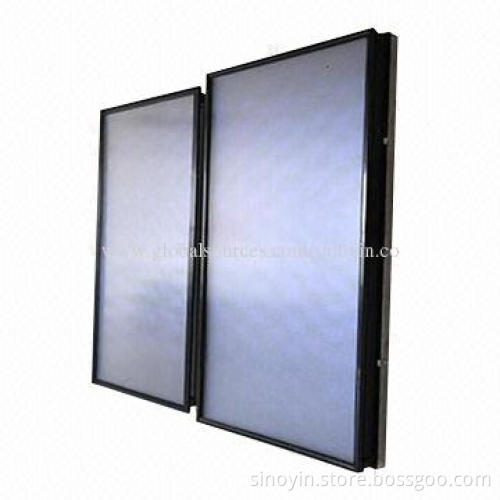

Panel Solar Collector with Whole Laser Welding and Blue Titanium Absorber

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Flat plate solar collector flat plate collector for on-roof, flat-roof and facade mounting

Dimensions: 2,050 x 1,050 x 95mm

Gross area: 2.15

Absorber area: 2.05

Aperture area: 1.98

Dry weight: 38kg

Liquid volume: 0.46g

Nominal flow rate: 21GPH (0.35GPM)

Nominal pressure loss: 160mbar (water, propylene-glycol, 68F)

Collector connections: 2 connectors at top, 12mm for compression fittings

Absorber type: 12mm/serpentine, laser-welded to aluminum absorber plate

Absorber coating: highly selective on aluminum

Absorption/emission: 95/5%

Covering: low iron, clear and solar safety glass (ESG)

Transmission of covering: 88%

Cover impact resistance passed optional impact resistance tests following EN 12975-2

Insulation fiber glass/1.2 inches

Collector frame material: powder coated aluminum

Heat loss coefficient: a1 (k1) 3.95W/(m²K)

Heat loss coefficient: a2 (k2) 0.0165W/( m²K)

Maximum stagnation temperature: 375.8°F (191°C)

Maximum operating pressure: 10 bar

Advantages:

S-type tube flat plate solar collector, with gotten the line patent in China
We are famous factory to produce S-type tube flat plate solar collector, no any welding on the tube, no any leakage
Laser welding between whole absorber panel and copper tube, high strength thicken, heavy duty aluminum frame
Much better than some technology of ultrasonic welding or heat-conducting glue in some factories
The instant heat efficiency of the collector can up to 81.1%, much higher than the 72% standard, very rare in China
Germany imported high efficient selective blue titanium coating
Used best copper tubes in domestic, copper brand is Hailiang
Special low-iron tempered glass with transmittance more than 92%
Mechanical load, freeze resistance, rain penetration, exposure, hail impact, external and internal shock tested etc.
Long lifetime, large absorber area, good warm keeping
